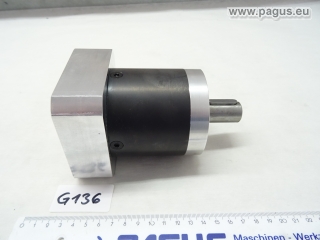

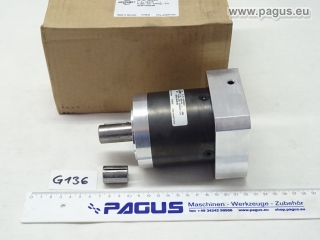

NEUGART transmission

Gears, planetary gears

NEUGART

PLE080-020

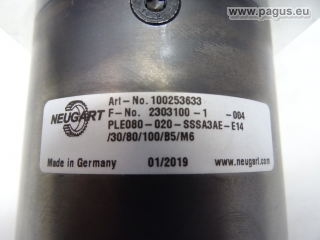

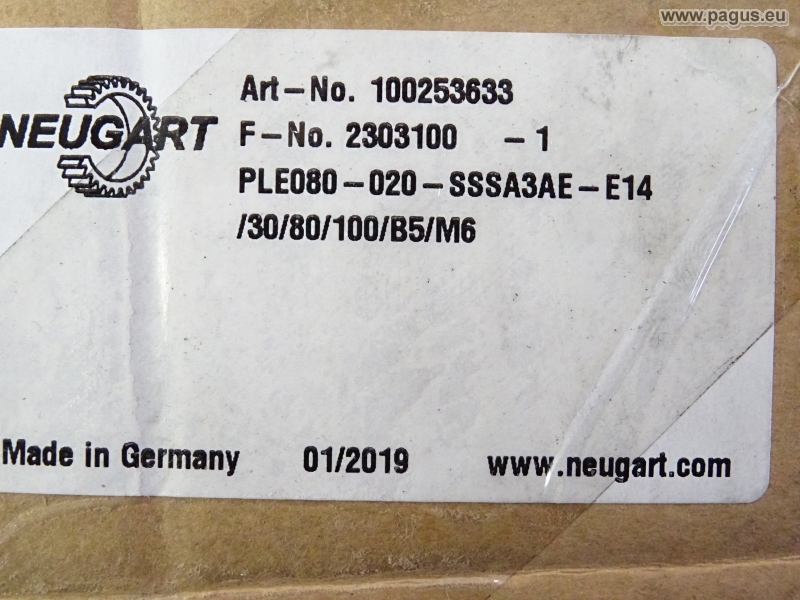

PLE080-020-SSSA3AE-E14/30/80/100/B5/M6

Item No.: 100253633

Translation ( i ): 20

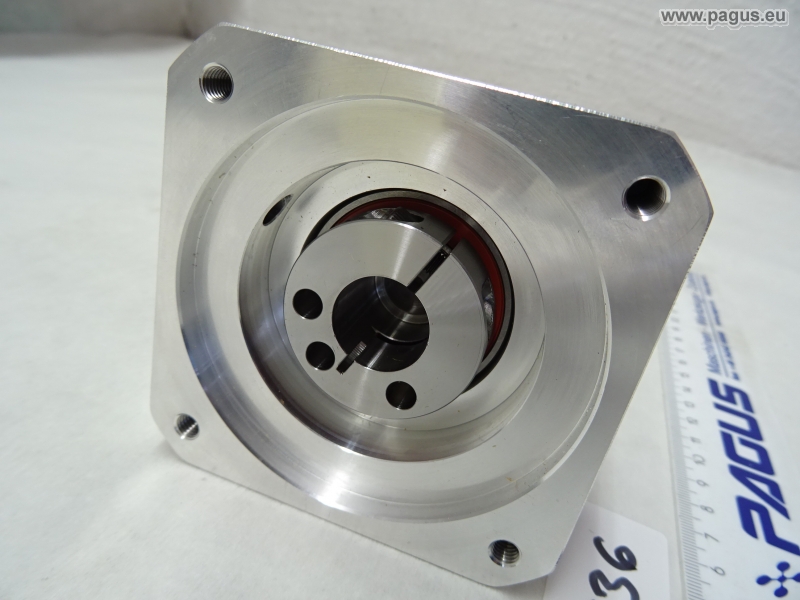

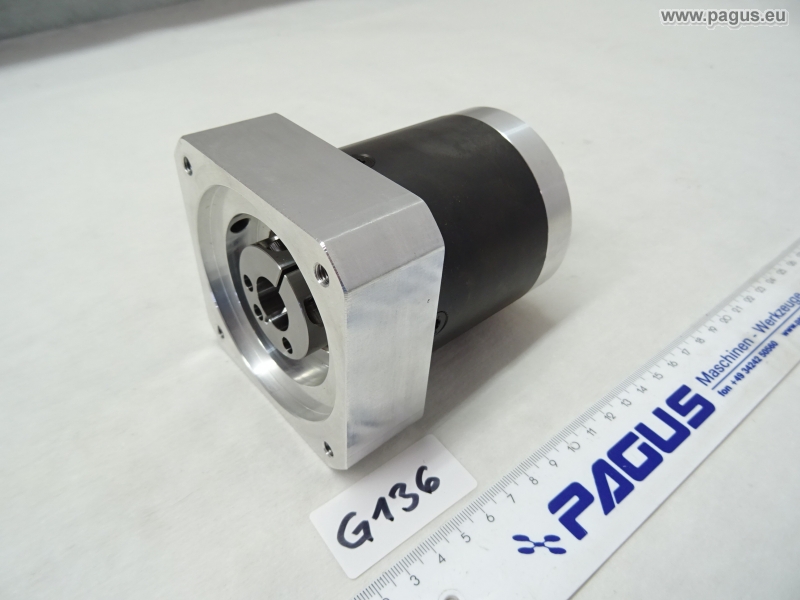

Input:

Coupling for shaft diameter: Ø 19 mm, shaft length: 25 mm

Flange: 90 x 90 /Ø 80 mm

Pitch circle diameter: Ø 100 mm, 4x threaded hole: M6 x 1.0, depth: 20 mm

with adapter socket for shaft diameter: Ø 14 mm, length: 26 mm

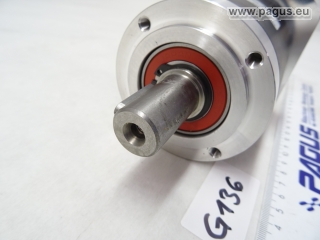

Output:

Shaft diameter: Ø 20 mm, shaft length: 35 mm, groove width: 6 mm

Flange: Ø 60 /80 mm

Pitch circle diameter: Ø 70 mm, 4x threaded hole: M6 x 1.0, depth: 12 mm

New !

Dimensions (gear): 152 x 90 x 90 mm

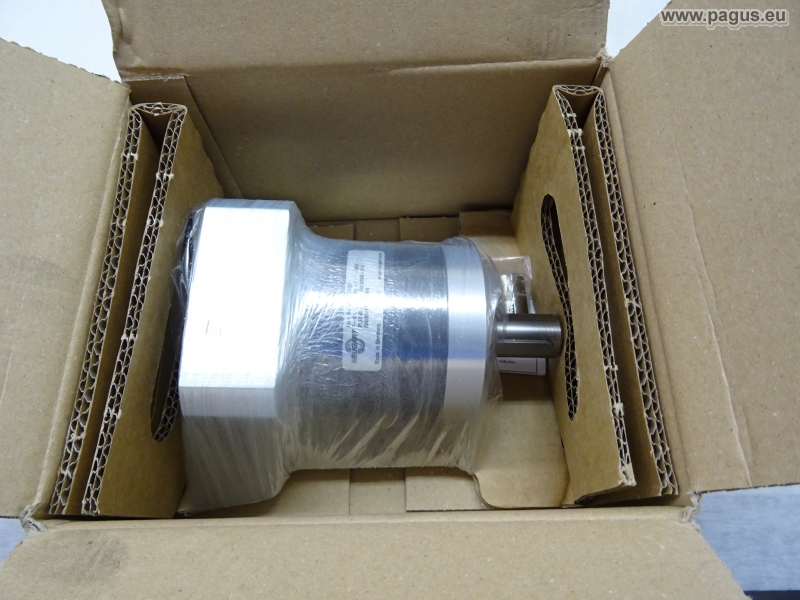

Dimensions (packaging): 200 x 175 x 125 mm
