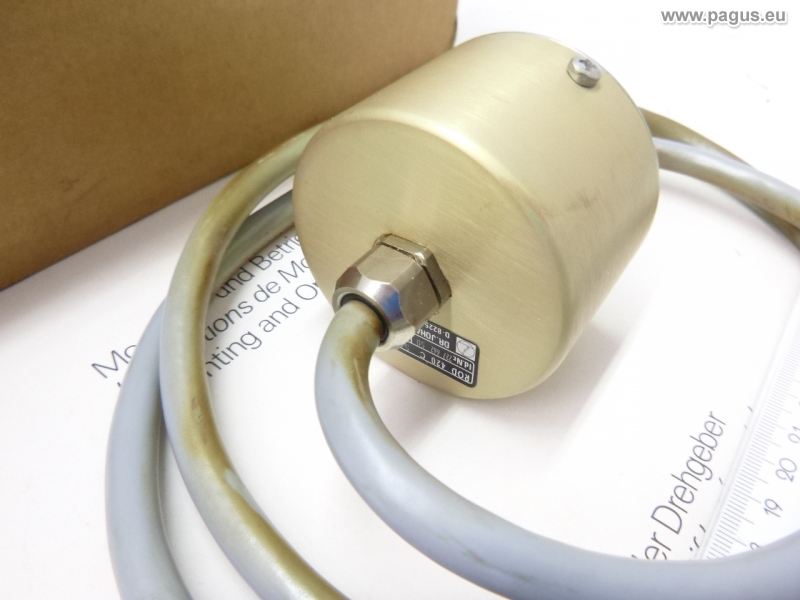

Rotary encoder, speed encoder
HEIDENHAIN

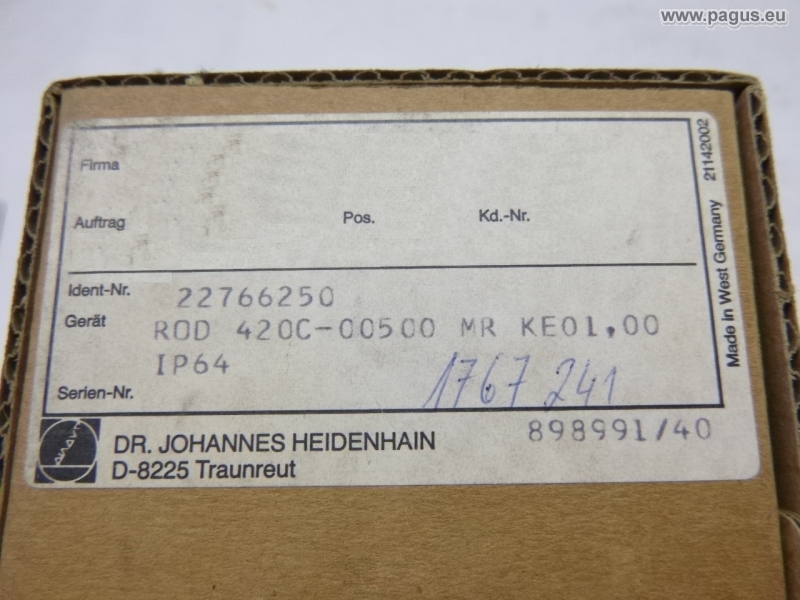

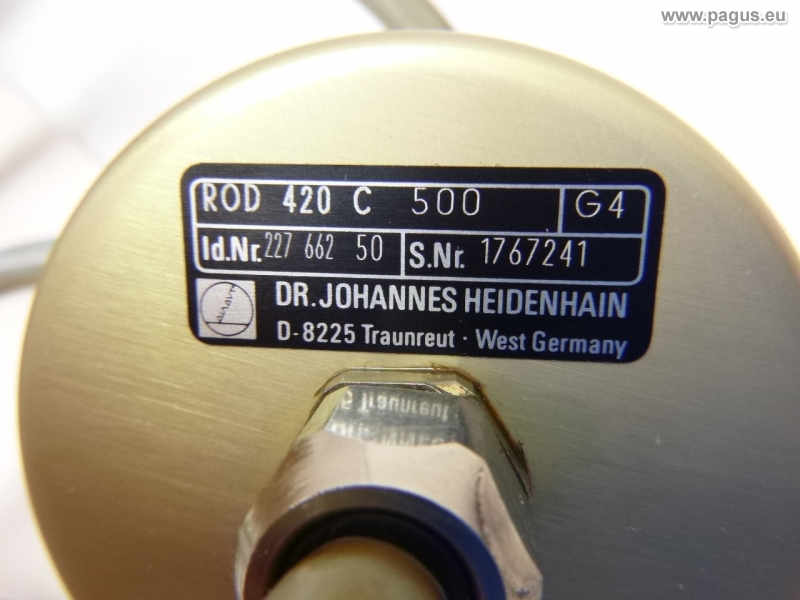

ROD 420 C 500 (ROD420C500)
227 662 50
500 L /revolution
Shaft diameter: Ø 10 mm
Wavelength: 20 mm
Flange diameter: Ø 36/58 mm
Hole circle diameter: Ø 50 mm
3x threaded hole: M3 x 0.5, depth: 8 mm
approx. 1.0 m connection cable with 11-pin plug

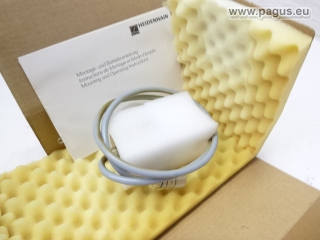

New, with documents!
Dimensions (without connection cable): 85 x 58 x 58 mm
Dimensions (packaging): 260 x 180 x 100 mm
