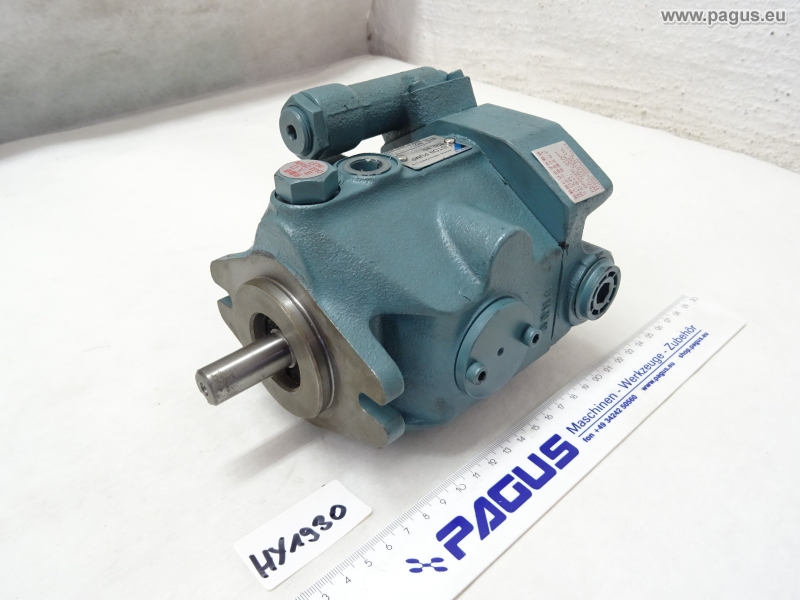

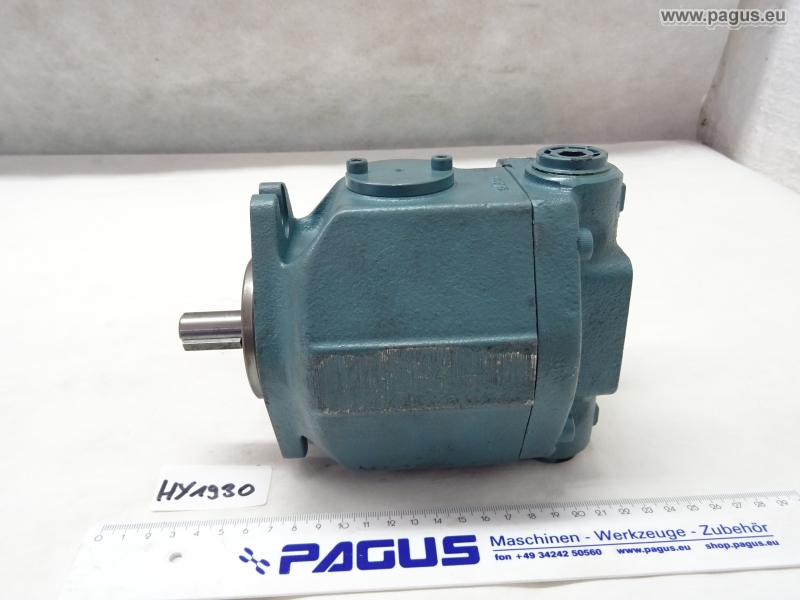

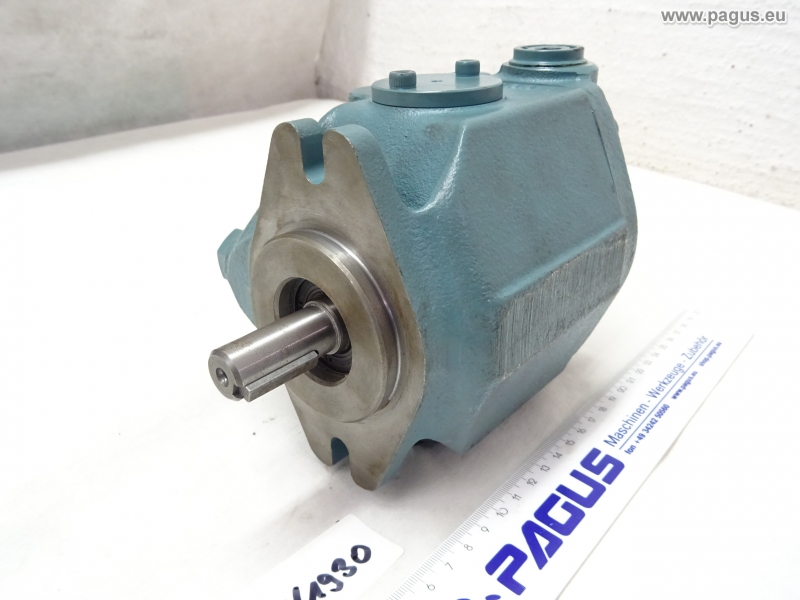

Axial piston pump, hydraulic pump

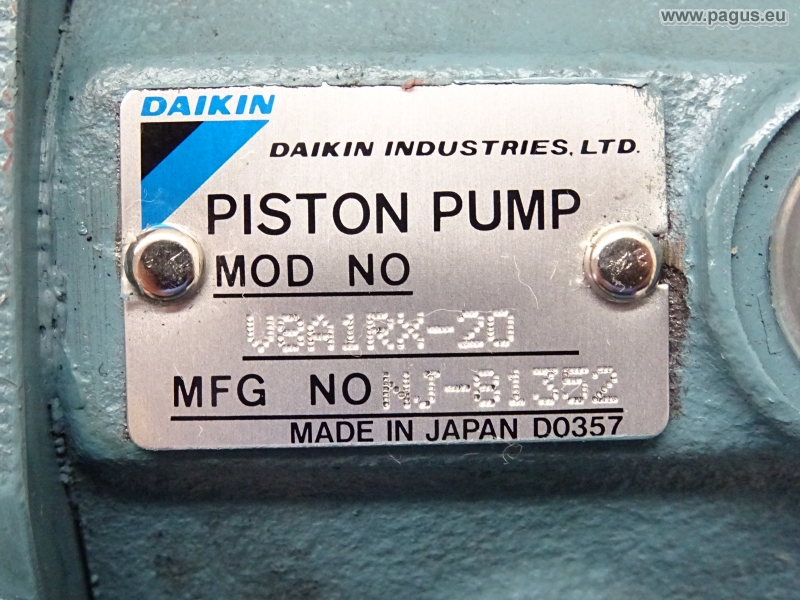

DAIKIN INDUSTRIES LTD.
V8A1RX-20
Vmax.: 8 cm³/rev
Pressure setting range: 8 - 70 bar

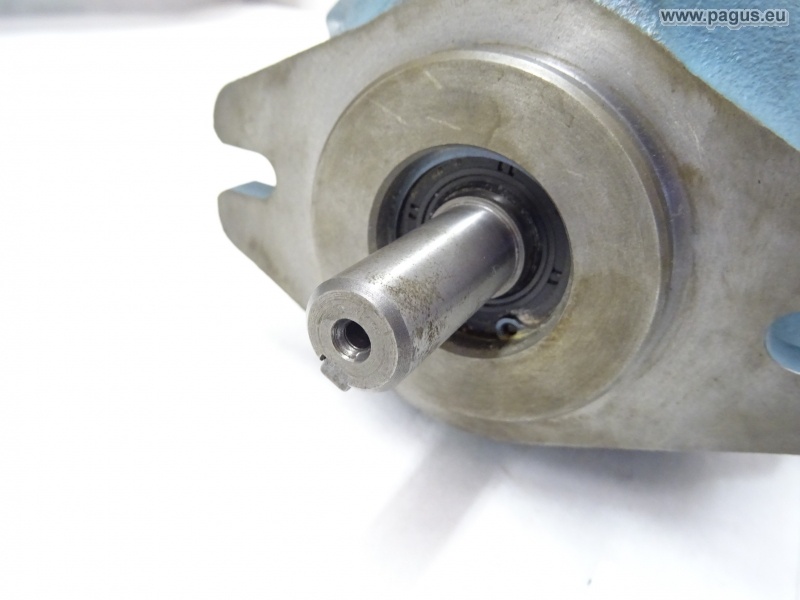

Shaft diameter: Ø 16 mm
Shaft length: 32mm
Groove width: 5 mm
Flange diameter: Ø 63 mm
Hole spacing: 100 mm
2x U-hole: diameter: Ø 9 mm, length: 15 mm
New !
Dimensions: 205 x 145 x 135mm
