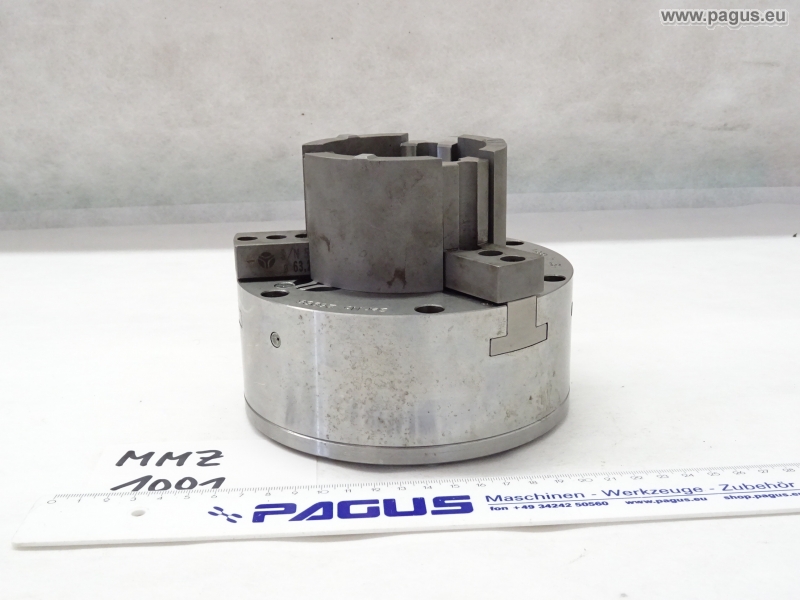

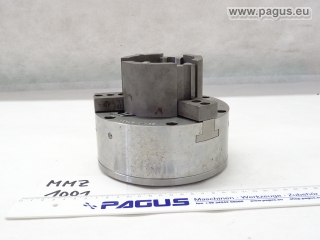

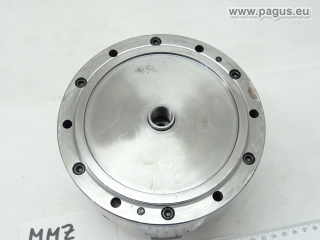

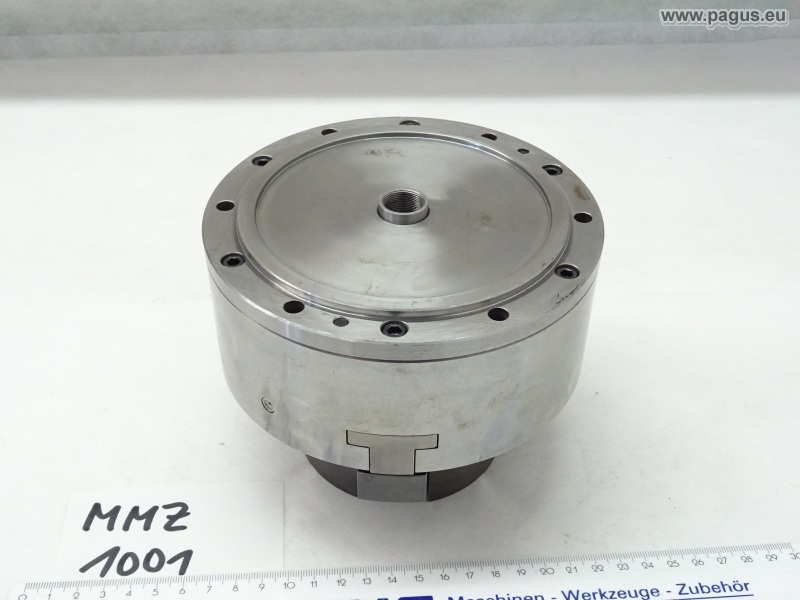

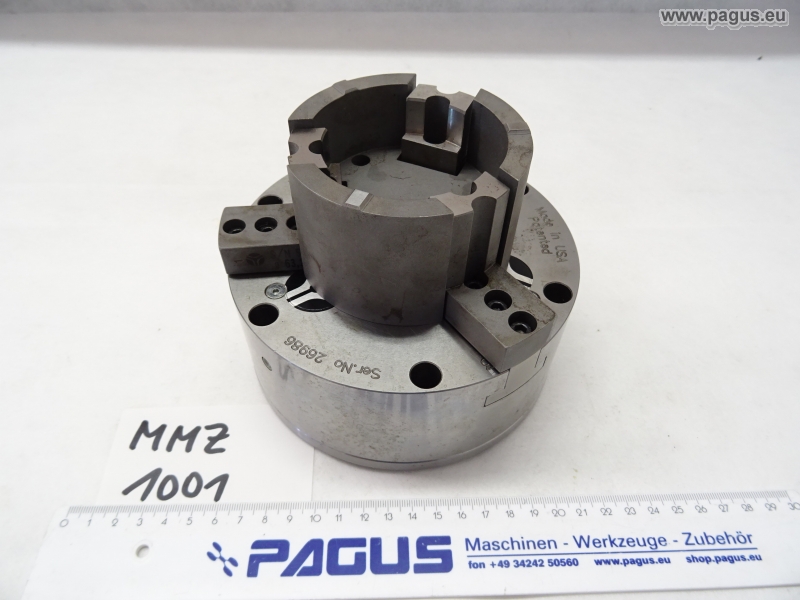

Precision air chuck, 3-jaw chuck, three-jaw chuck, lathe chuck

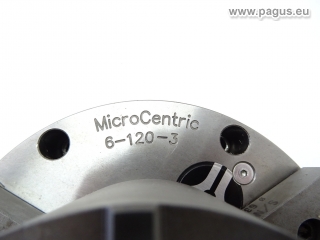

MICROCENTRIC
6-120-3
Outer Ø: 150 mm (6 inches)
Clamping jaws: 3
Clamping stroke: 3 mm
Clamping force: 17 kN
Compressed air: max. 7 bar
Speed: max. 4000 rpm
Fan diameter: Ø 125 /150 mm
Bolt circle: Ø 136 mm
Hole Ø: 6.5 mm with countersunk hole: Ø 11 mm, depth: 22 mm
Height with jaws: 120 mm
used, checked!
Dimensions: 150 x 150 x 123mm
