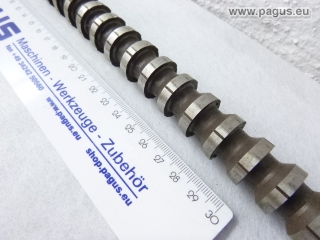

Push broach for spline hub profile, broach

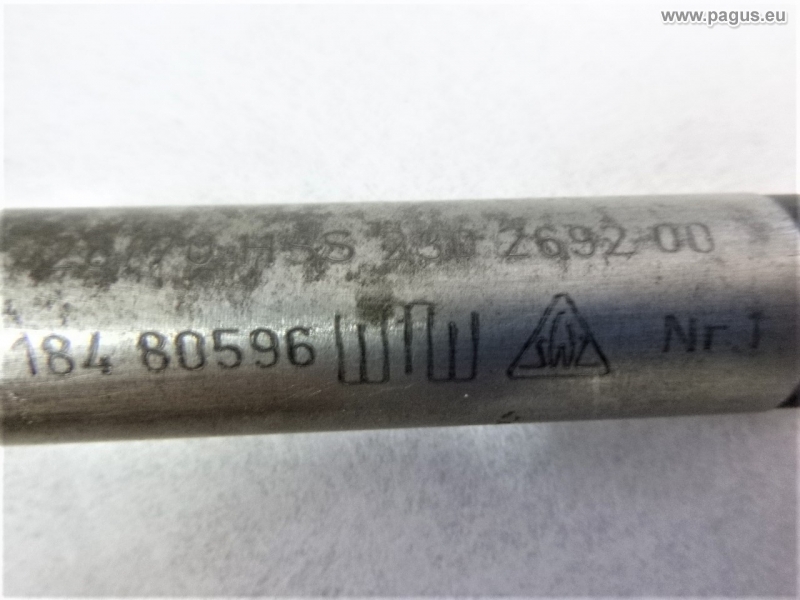

WMW, SWZ GmbH
20,725x25
20.725x25H12x8H84K
TGL 0-5471
Broaching length: 28 - 70 mm
Tooth spacing: 14.0 mm
Number of teeth: 41
Length of the row of teeth: 560 mm

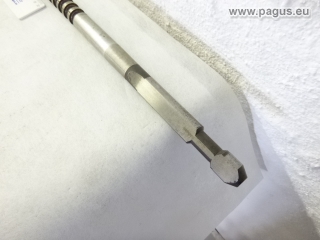

Guide shaft 1: Ø 20 x 140 mm
Guide shaft 2: Ø 20 x 90 mm
Total length: 950 mm
used, checked!
Dimensions: 950 x 25 x 25 mm
