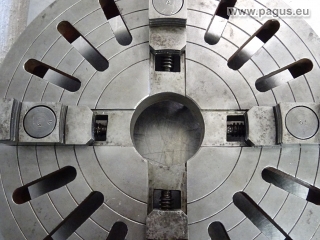

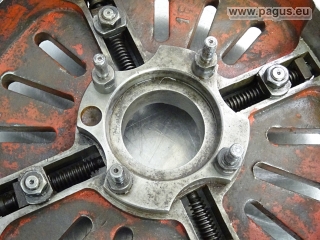

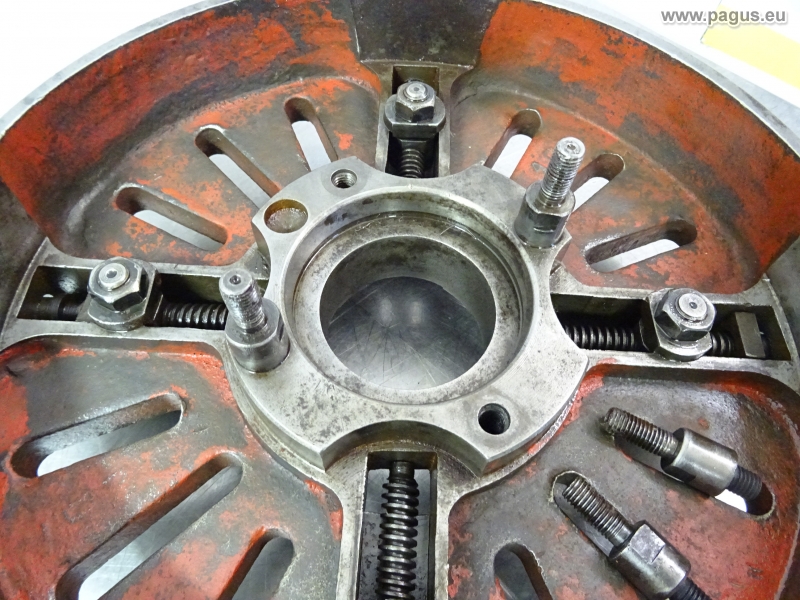

Faceplate
PAGUS / WMW
Outer Ø: 400 mm
Height with jaws: 125 mm
Hole: Ø 80 mm
Long holes: Ø 15 x 68 /78 mm
Bolt circle diameter: Ø 132.5 mm
4x threaded hole: M12 x 1.75, depth: 25 mm
4x threaded bolts: M12 x 1.75
1x bore: Ø 19 mm, depth: 8 mm
Cone: Ø 103 /106 mm, depth: 15 mm
used, checked!
Dimensions: 400 x 400 x 150mm
