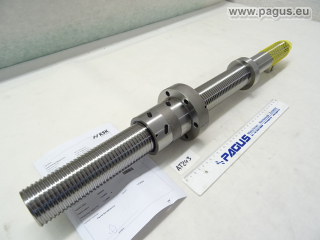

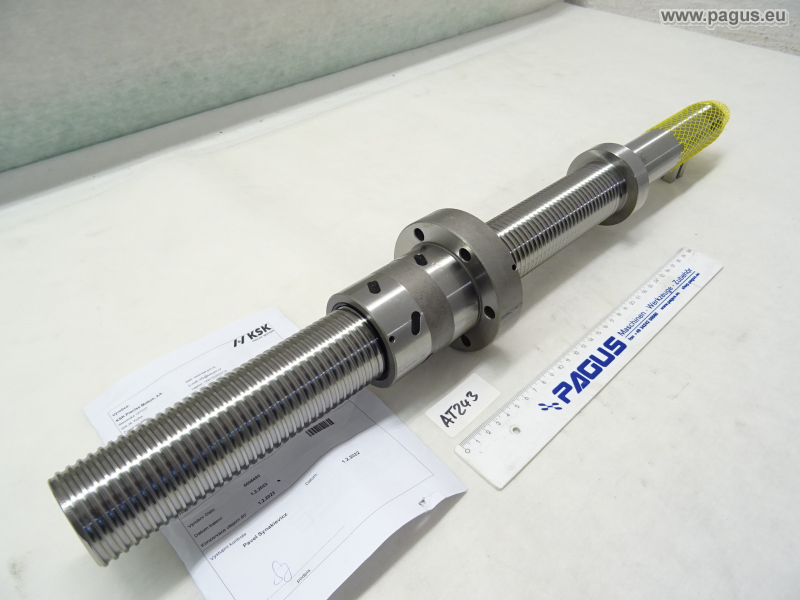

Ball screw with nut
KSK PRECISE MOTION
KS 50x5RHZ443C673P3APRPZ4+4LUZD3.5-50.9

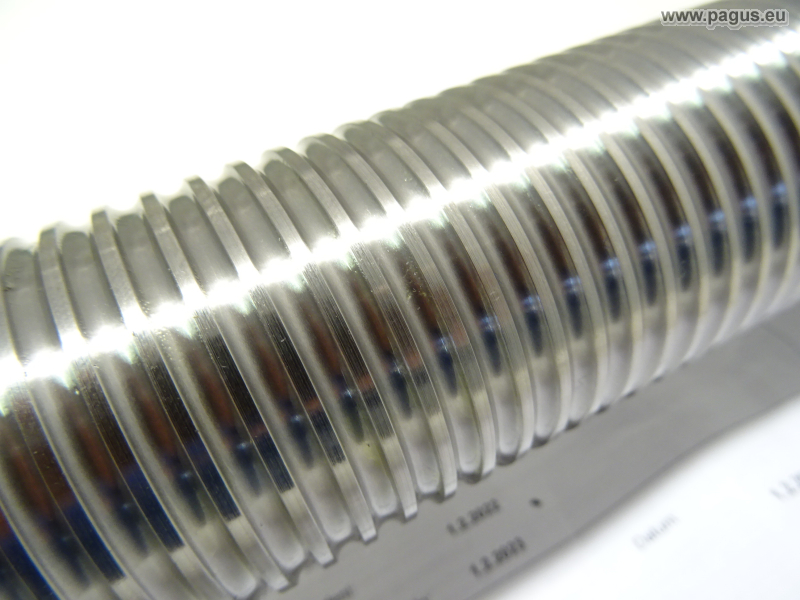

Thread length: 455 mm
Thread: Ã 50 mm
Pitch: 5 mm

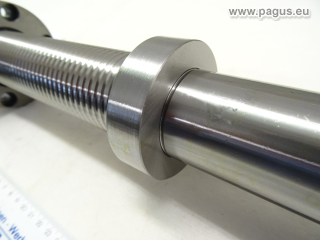

Ring: Ã 70 mm, width: 19.5 mm

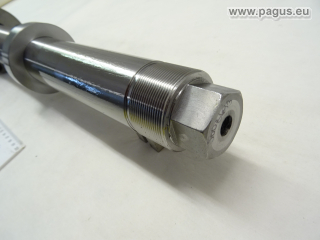

Shaft stub: Ã 45 mm, length: 150 mm
Thread: M45 x 1.5, length: 25 mm

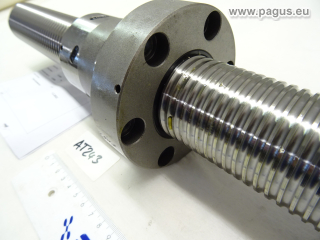

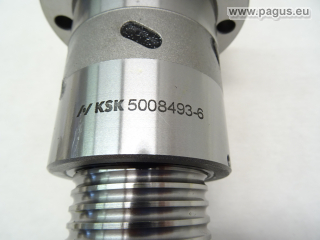

Ball nut (with flange): Type: KSK 5008493-6
Diameter: Ã 67.5 mm, length (without flange): 76 mm
Flange diameter: Ã 100 mm, width: 25 mm
Bolt circle diameter: Ã 82.5 mm
6x bore: Ã 9.0 /15.0 mm

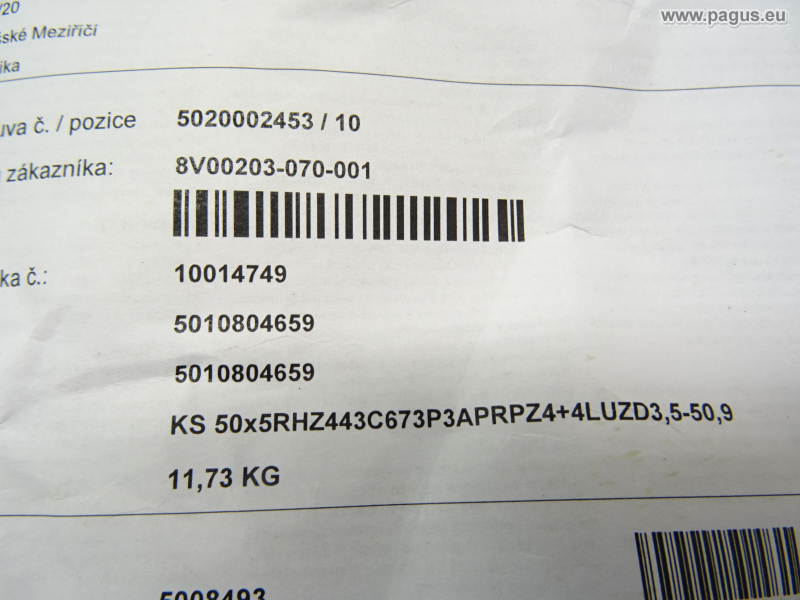

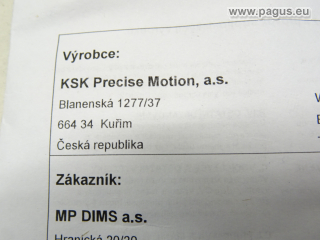

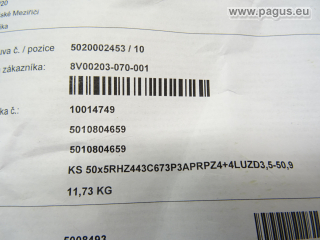

New, with documents!
Dimensions: 674 x 100 x 100 mm
