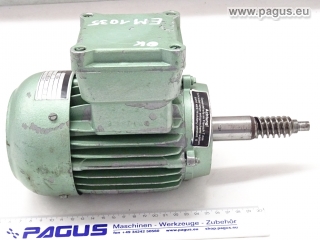

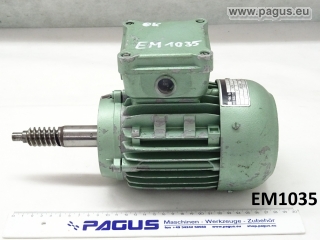

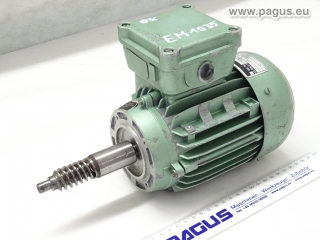

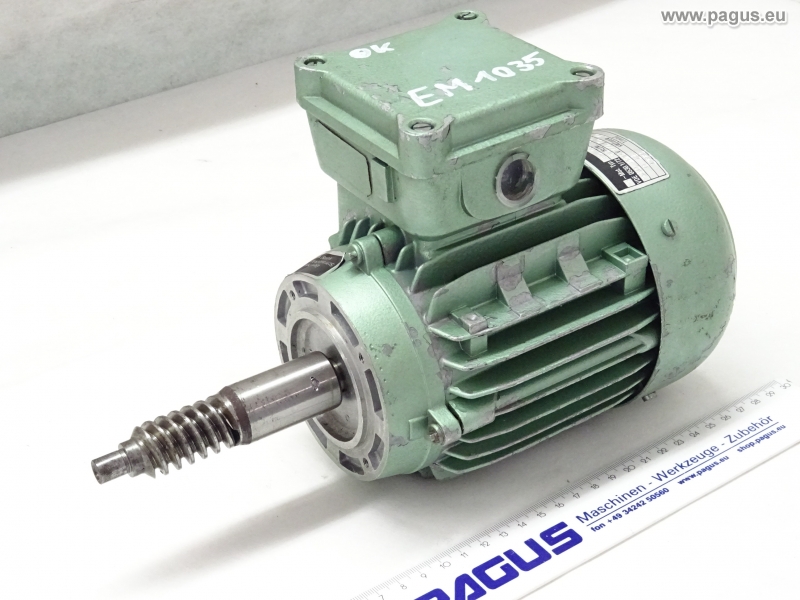

Three-phase electric motor
STEPHAN-WERKE

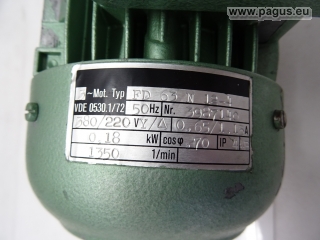

Type: ED 63 N 12-4 ( ED63N12-4 )
0.18 kW
1350 rpm
220/380 V 3AC 50 Hz
Design: B14K
IP44
Shaft diameter: Ø 11 mm
with worm shaft: Ø 25 x 45 mm /worm Ø 22 x 35 mm /Ø 14 x 5 mm /Ø 10 x 12 mm
Pitch (screw): 5.5 mm
Wavelength (total): 100 mm
Flange diameter: Ø 60/90 mm
Hole circle diameter: Ø 75 mm

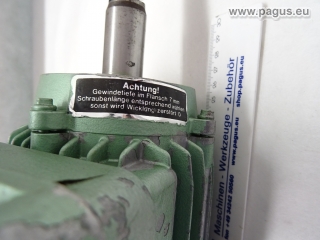

4x threaded hole: M5 x 0.8, depth: 7 mm
New!
Dimensions: 290 x 130 x 175 mm
