DC motor with external ventilation
VEM

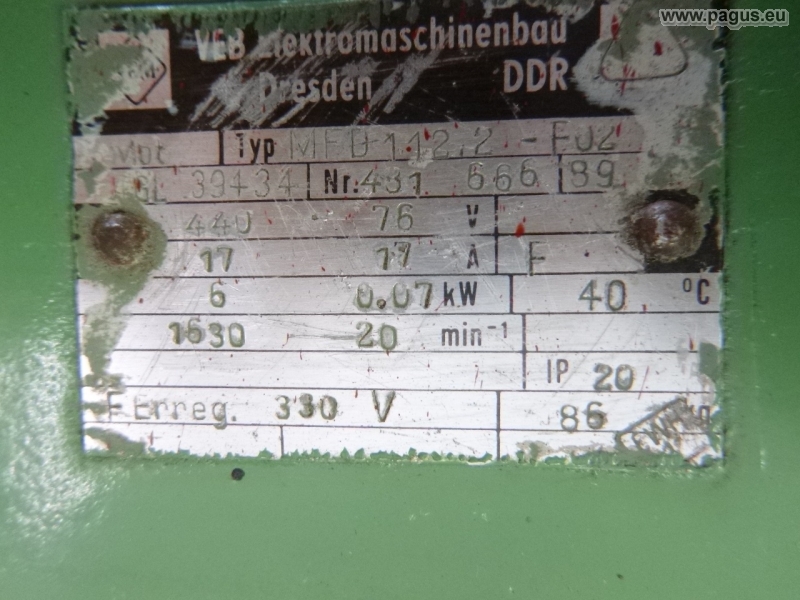

MFD 112.2 - F 02 (MFD112.2-F02)
TGL 39434 (TGL39434)
0.07 /6.0 kW
20/1630 rpm
76/440 V
External excitation: 330 V

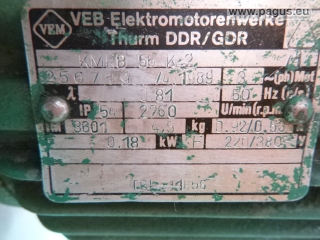

Forced ventilation: KMRB 56 K 2 (KMRB56K2)
0.04 kW
2760 RPM
220/380 V 3AC
Shaft diameter: Ø 38 mm
Shaft length: 80 mm
Groove width: 10 mm
Flange: Ø 230 mm /240 x 240 mm
Hole circle diameter: Ø 265 mm
Hole diameter: Ø 14.5 mm
Motor base: 390 x 220 mm
Hole spacing (parallel to the shaft): 338 mm
Hole spacing (across the shaft): 188 mm
Hole diameter: Ø 15 mm
used, checked, very good condition!
Dimensions: 715 x 490 x 310 mm
