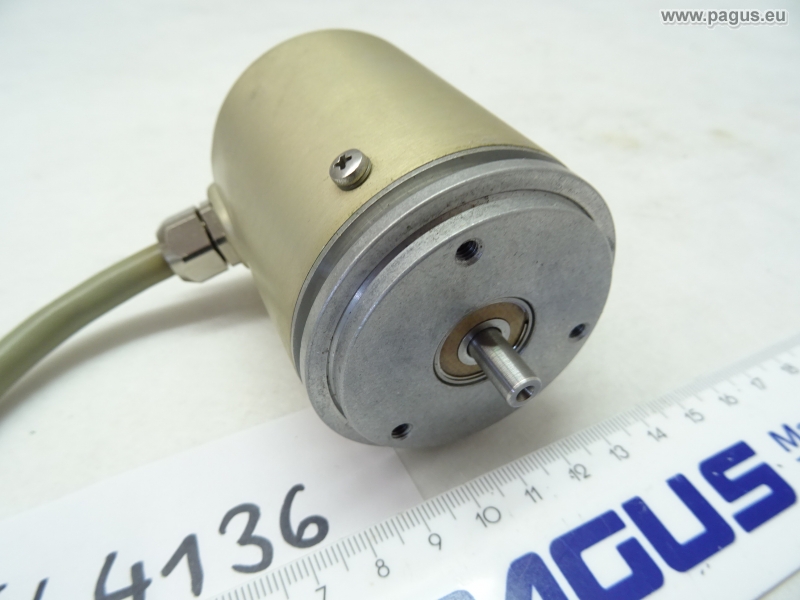

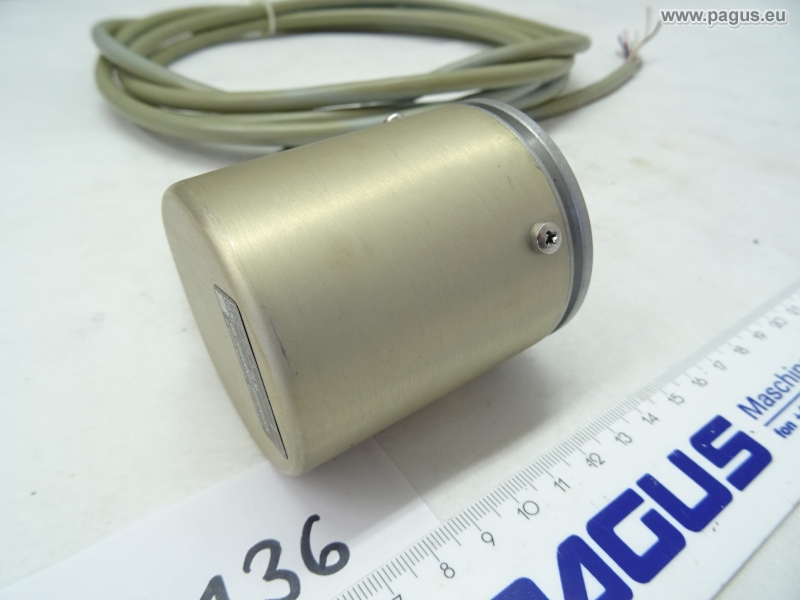

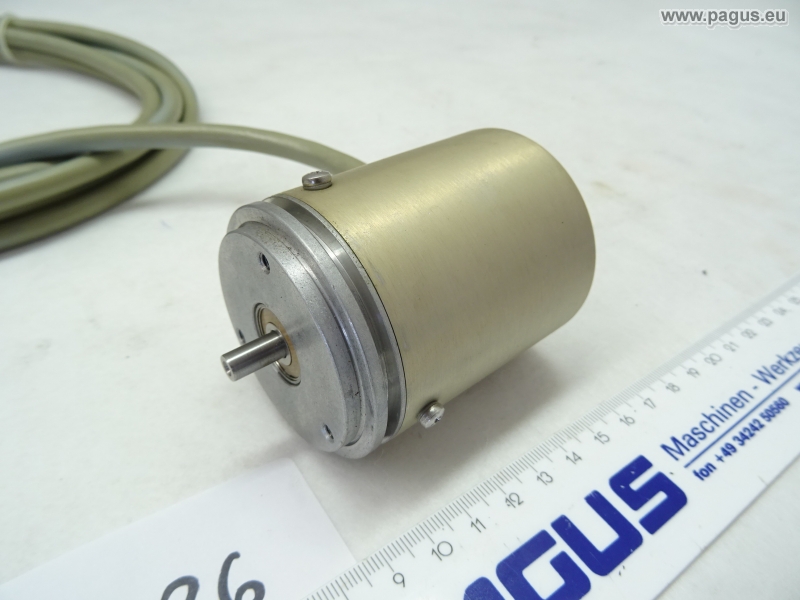

Rotary encoder, speed encoder
HEIDENHAIN
ROD 426A 1000 ( ROD426A1000 )
223 675 6A
1000L/rev
Shaft diameter: Ø 6 mm
Wavelength: 10mm
Flange diameter: Ø 50 /58 mm
Bolt circle diameter: Ø 42 mm
3x threaded hole: M4 x 0.7, depth: 8 mm
approx. 2.0 m connection cable
New, with documentation !
Dimensions (without connection cable): 85 x 60 x 72 mm
