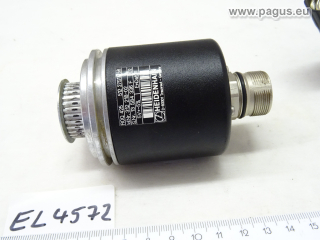

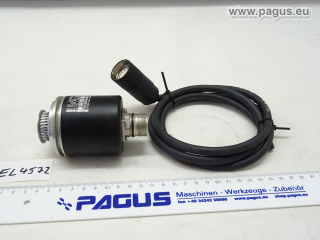

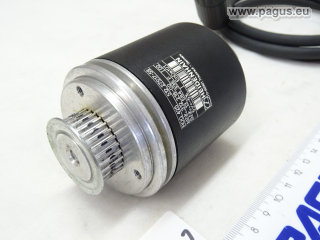

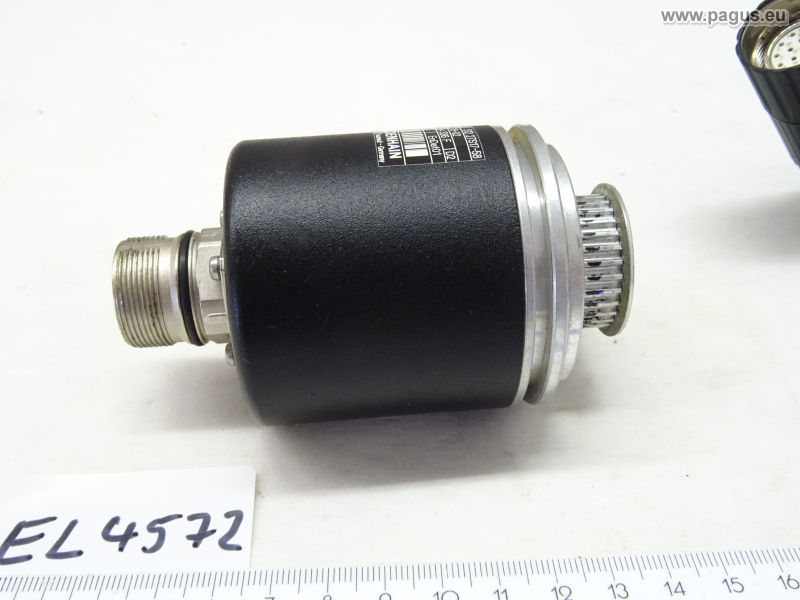

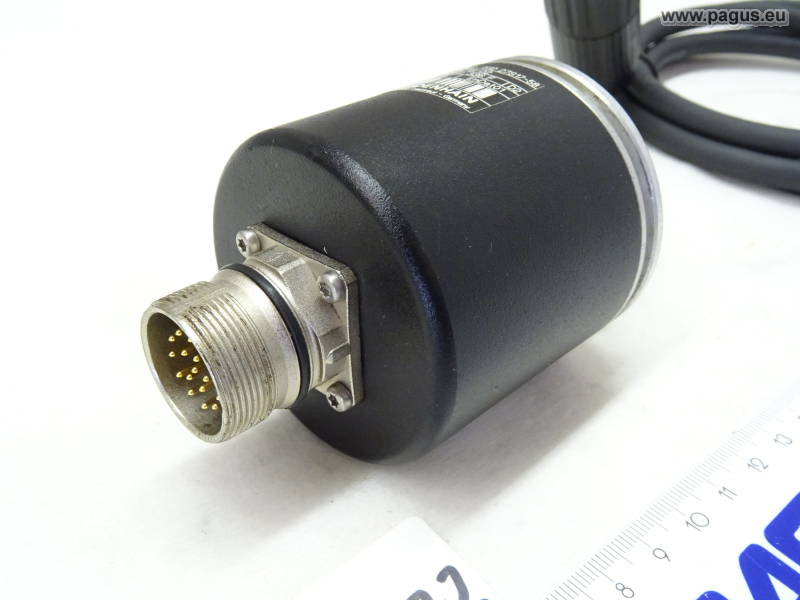

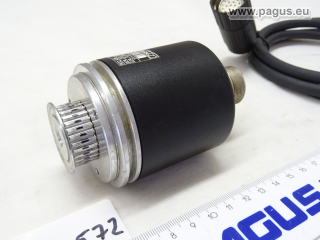

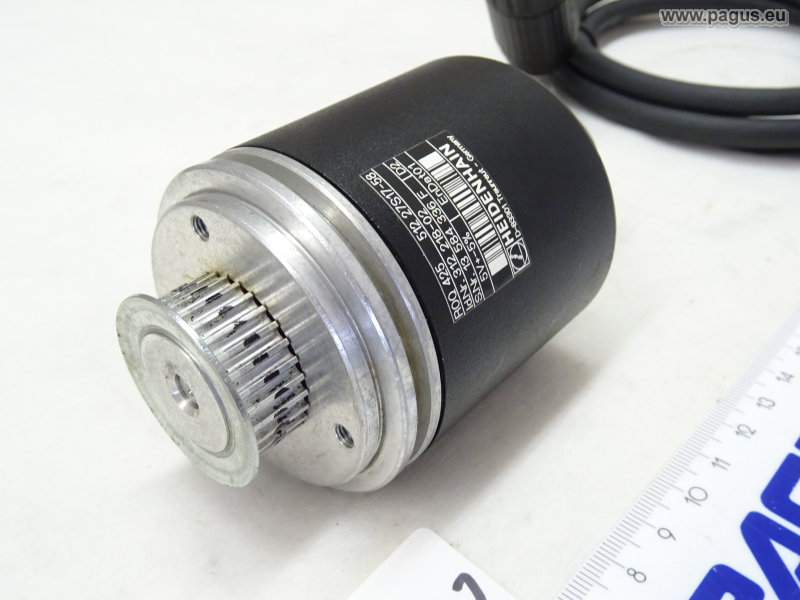

Rotary encoder, speed encoder
HEIDENHAIN
ROQW 425 ( ROQ425 )
512 27S17-58
Id.Nr.: 312 218-02
S.NR.: 13 584 336 F
5V ±5%
Shaft diameter:Â Ã 6 mm
Wavelength: 10mm
Toothed belt wheel: Ã 28 mm, width: 10 mm
Tooth spacing: 3 mm, teeth: 30
Flange diameter: Ã 50 /58 mm
Bolt circle diameter: Ã 42 mm
3x threaded hole: M4 x 0.7, depth: 8 mm
approx. 1.2 m connection cable
used, tested !
Dimensions (without connection cable): 100 x 58 x 58 mm
