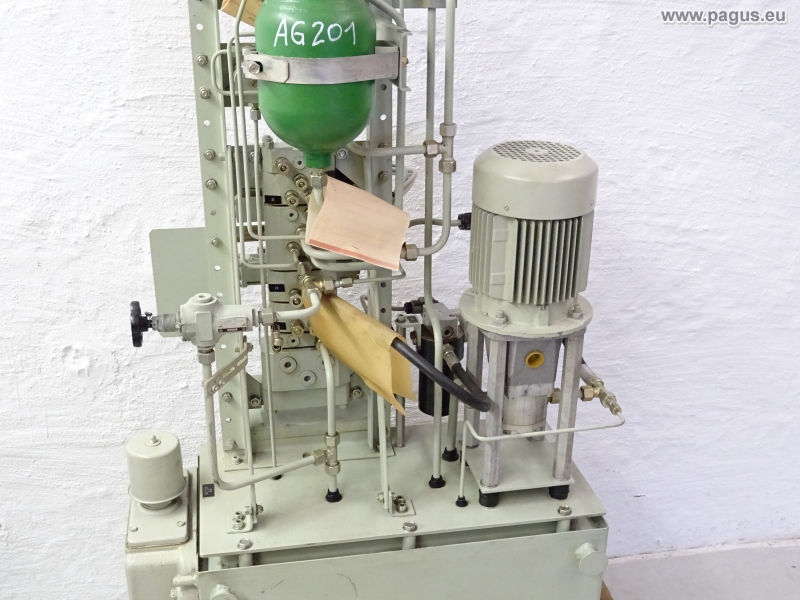

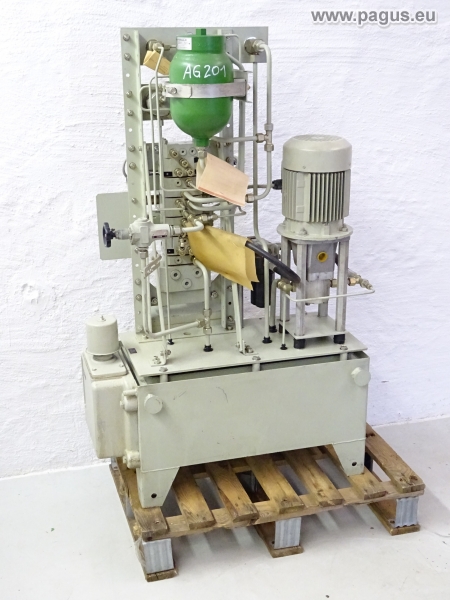

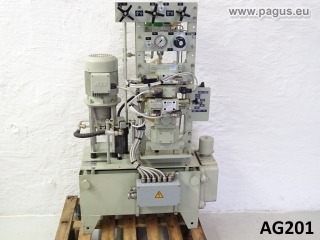

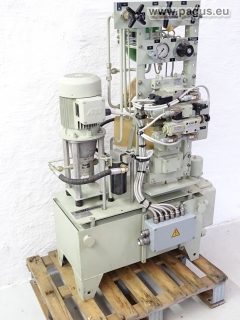

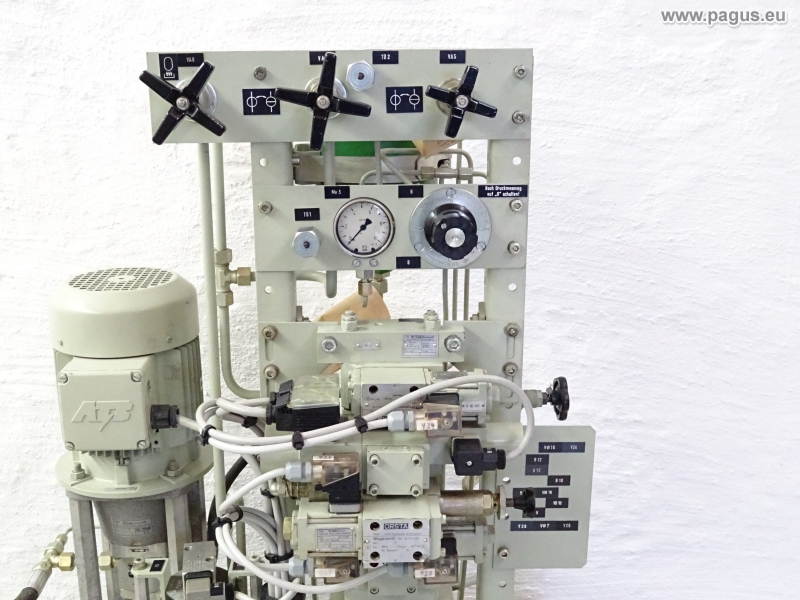

Hydraulic power pack with tank, universal power pack

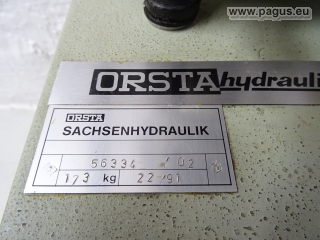

ORSTA, SAXONY HYDRAULICS
56334/02

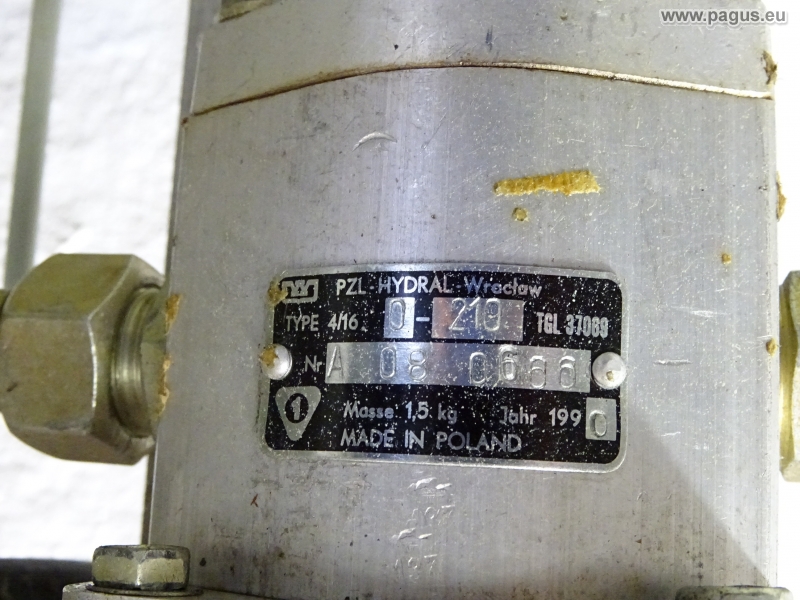

Hydraulic pump: PZL HYDRAL
Type: 4 /16.0-210
TGL 37069
16 MPa (160 bar)
4.0 dm³ /min (4.0 l /min)
Motor: ATB AF 90S /4A-11
1.1 kW
1400 rpm
220/380 V 3AC 50 Hz
IP54

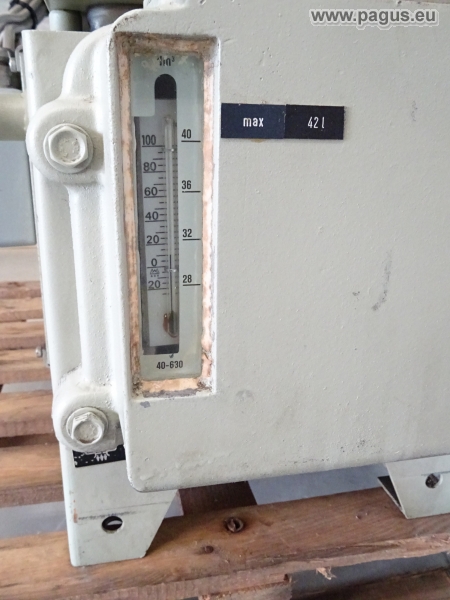

Tank: max. 42 l
New, with documents!
Dimensions: 760 x 450 x 1200 mm
