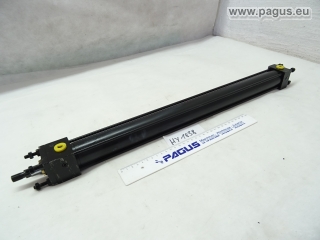

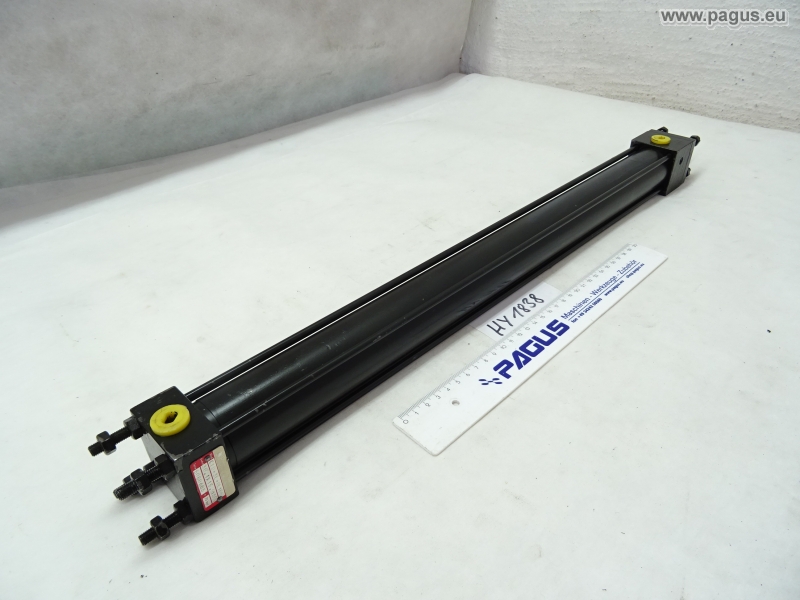

Hydraulic cylinder, double-acting
PARKER

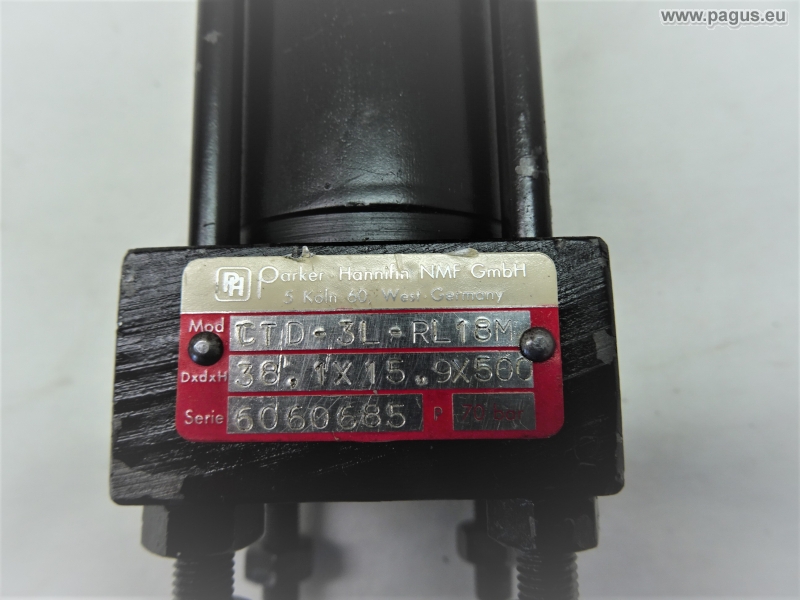

CTD-3LRL18M
Piston diameter: Ø 38.1 mm

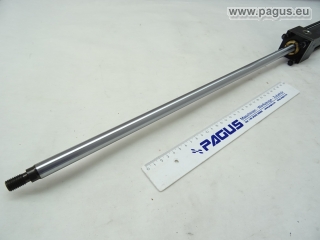

Bar diameter: Ø 15.9 mm
Stroke: 500mm

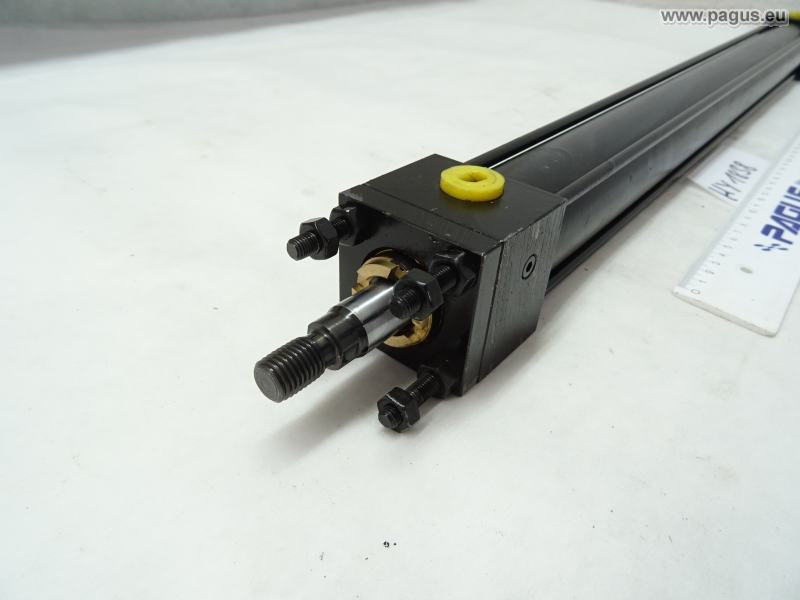

Rod thread: M12 x 1.5, length: 15 mm
Flange: 51 x 50mm
Bolt circle: Ø 52 mm
8x studs: M6 x 1.0, length: 20 mm
used, checked!
Dimensions: 680 x 52 x 52mm
More articles in this category
CG 70 C 40/18 - 30
Bar diameter: Ø 18 mm
Stroke: 30mm
Hydraulic cylinder, double-acting, with piston rods on both sides
used, tested !
HY1782
CD 70 C 25/16 - 0425
Bar diameter: Ø 16 mm
Stroke: 425mm
Hydraulic cylinder, double-acting
used, tested !
HY1802
HEB hydraulic element constructionZ100-102-50/25/40
Z100-102-50/25/40-206/S21/B1
Stroke: 40 mm, nominal pressure: 100 bar
Hydraulic cylinder, double-acting
New!
HY2343
CKJ-3LRLS19M
Bar diameter: Ø 16 mm
Stroke: 30mm
Hydraulic cylinder, double-acting, with piston rods on both sides
used, tested !
HY1823
Hydraulic Cylinder for UPW 63
stroke: 56 mm
unused!
HY870
CH2HRLS13MC-M-1100
Bar diameter: Ã 25.4 mm
Stroke: 220mm
Hydraulic cylinder, double-acting
New !
HY1991
HYE-KE-32/18-160-MD-C10
stroke: 160 mm
Hydraulic cylinder, double acting
used, checked!
HY1475
S1-200 /125x3200 /0
TGL 10906
stroke: 3200 mm
HY519
CKC-3LPLS19M
Bar diameter: Ø 16 mm
Stroke: 20mm
Hydraulic cylinder, double-acting, with piston rods on both sides
used, tested !
HY1830
