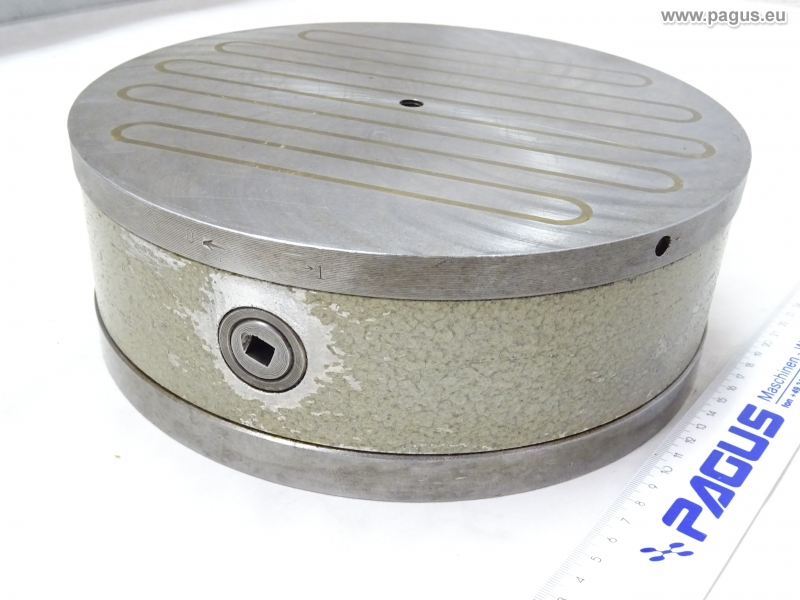

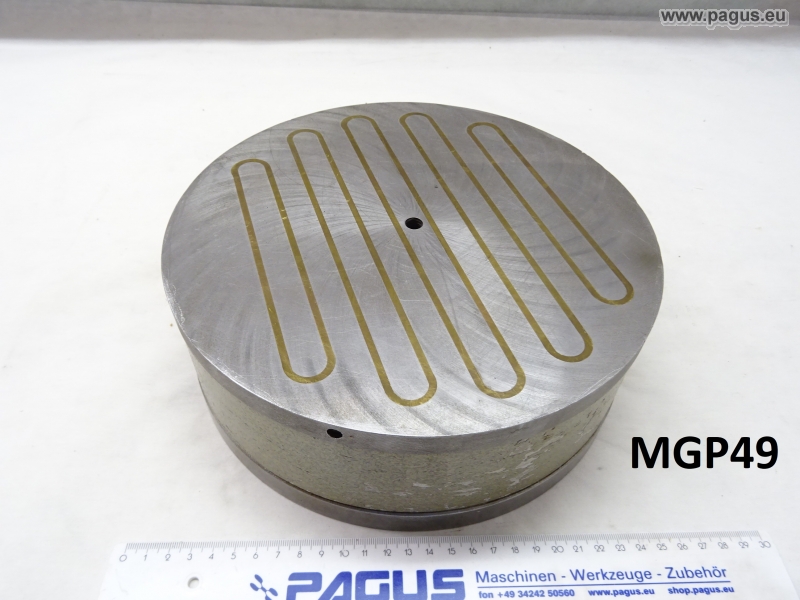

Magnet plate, permanent magnetic lathe chuck
NAREX

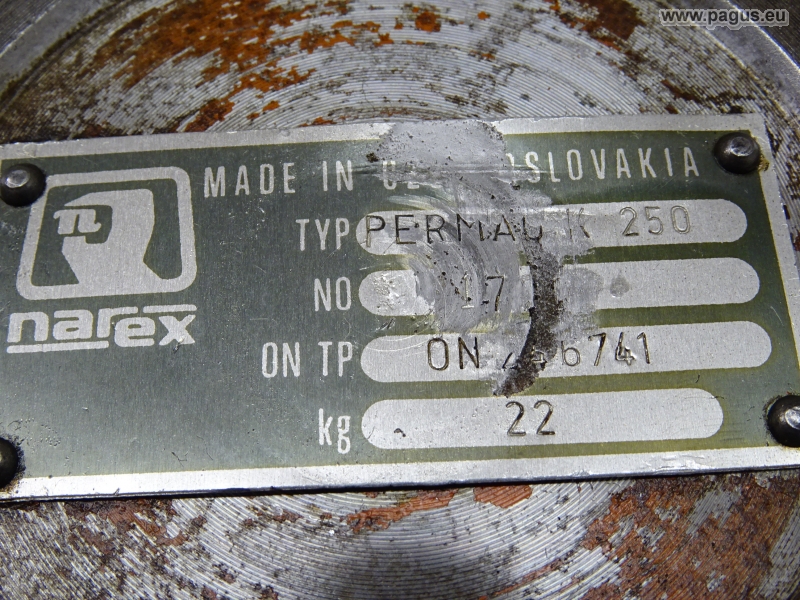

Type: PERMAG K 250

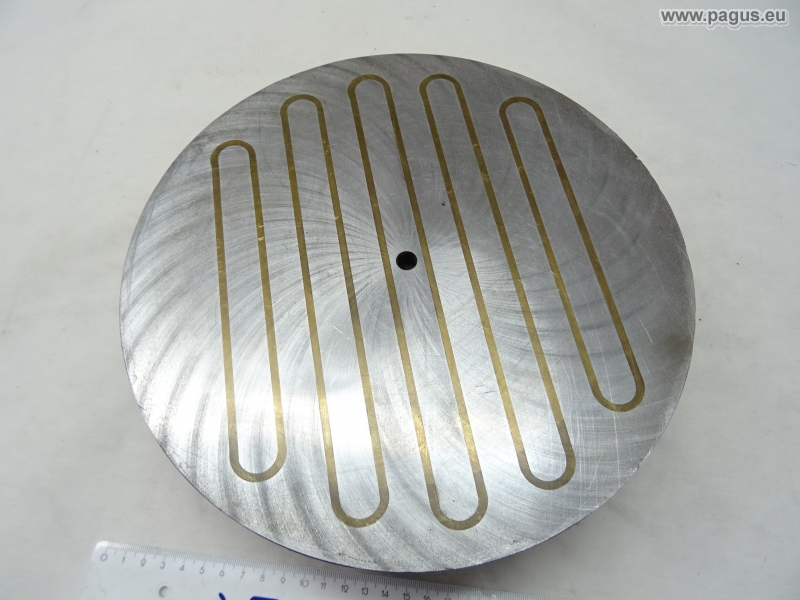

Work surface: Ø 250 mm
Height: 90mm

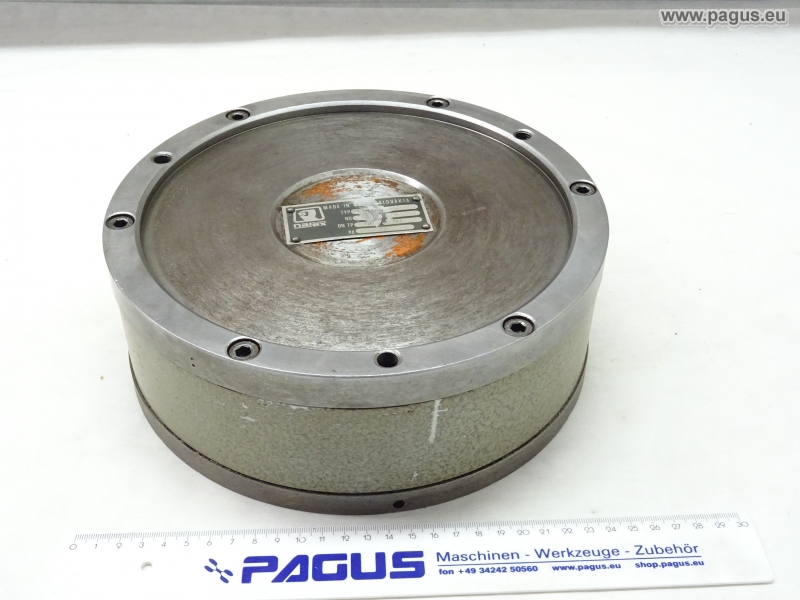

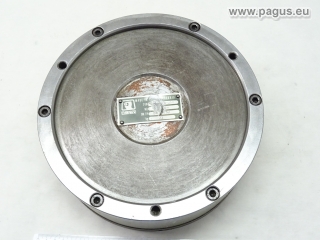

Flange (rear): Flange diameter: Ø 215 /250 mm
Bolt circle diameter: Ø 231 mm
3x threaded hole: M10 x 1.5, depth: 15 mm
used, checked!
Dimensions: 250 x 250 x 90mm
