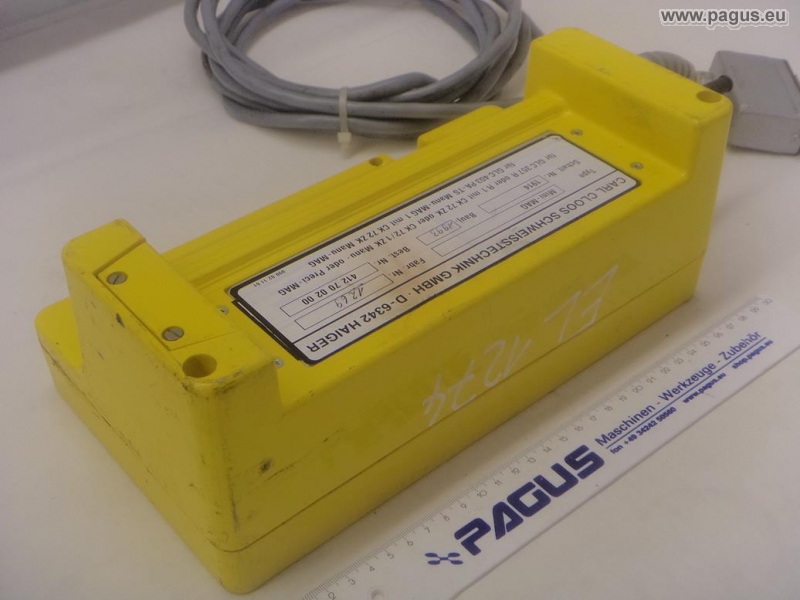

Operating Unit
CLOOS
Mini-MAG
Order No .: 412 70 02 00
Year of construction: 1993
with approx. 4.5 m cable
Used!
Dimensions (without cable): 310 x 165 x 120 mm
