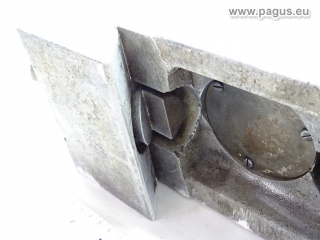

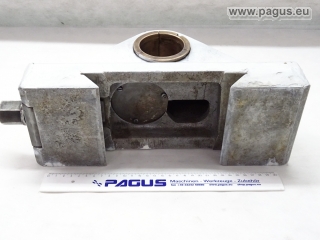

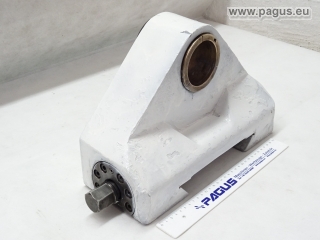

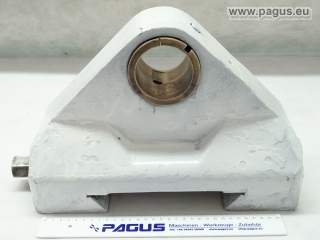

Bearing block, counter bearing for milling spindle
WMW
Ø 70mm x 150mm

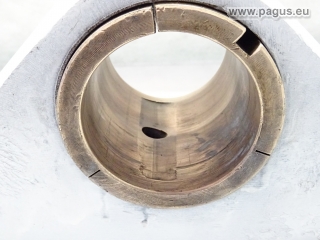

Bearing diameter (inner): Ø 70 mm
Bearing width: 98 mm
Distance between the center of the spindle and the upper edge of the dovetail: 150 mm
Dovetail guide: 200 /155 mm, height: 30 mm, width: 135 mm
Bearing foot: 350 x 135 mm
Material (housing): cast iron
used, checked!
Dimensions: 395 x 160 x 240mm
