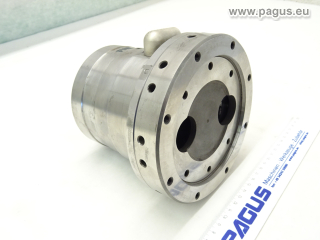

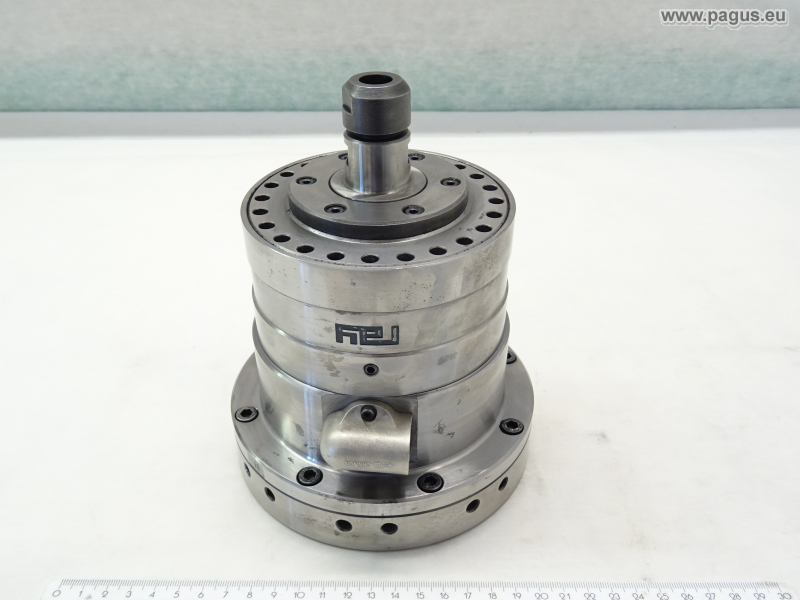

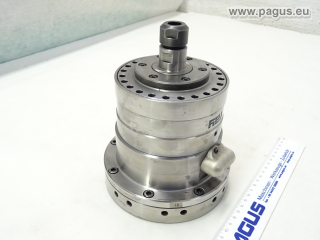

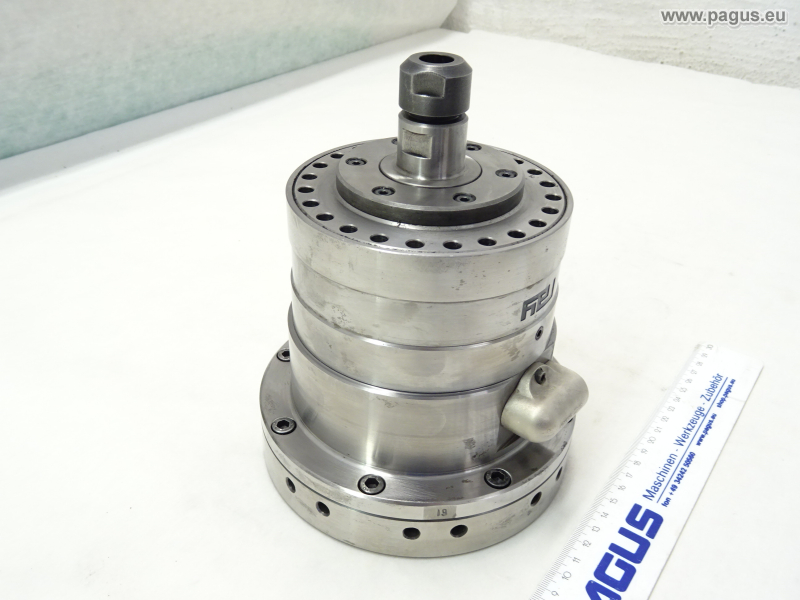

Grinding head, motor spindle, spindle motor
RAY AG Zurich

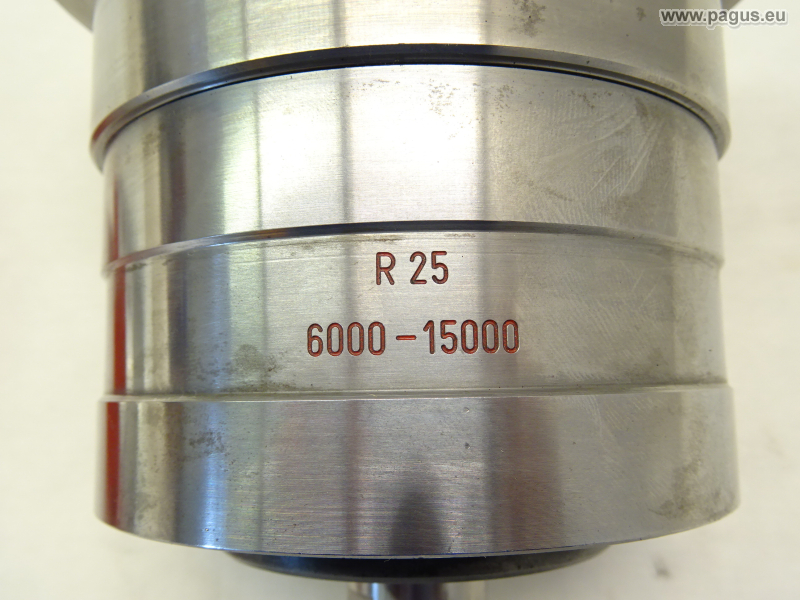

Type: R 25
6000 - 15000 rpm

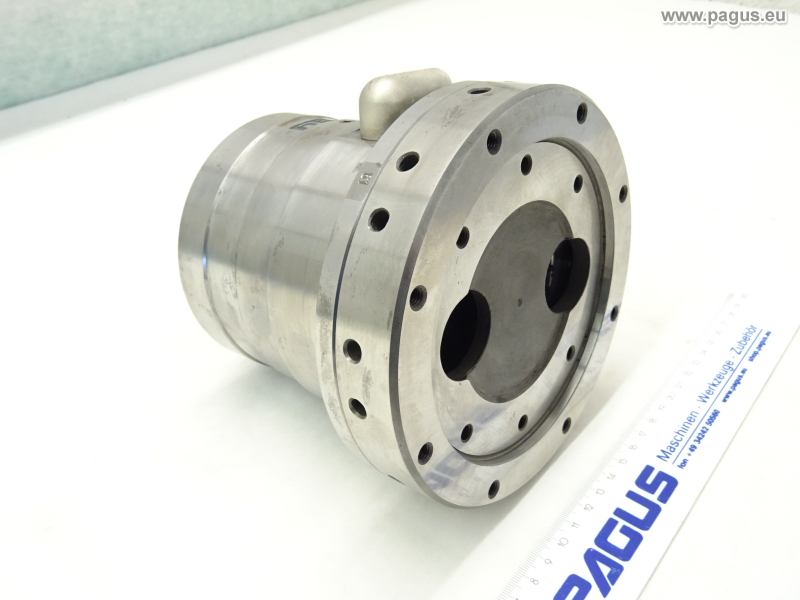

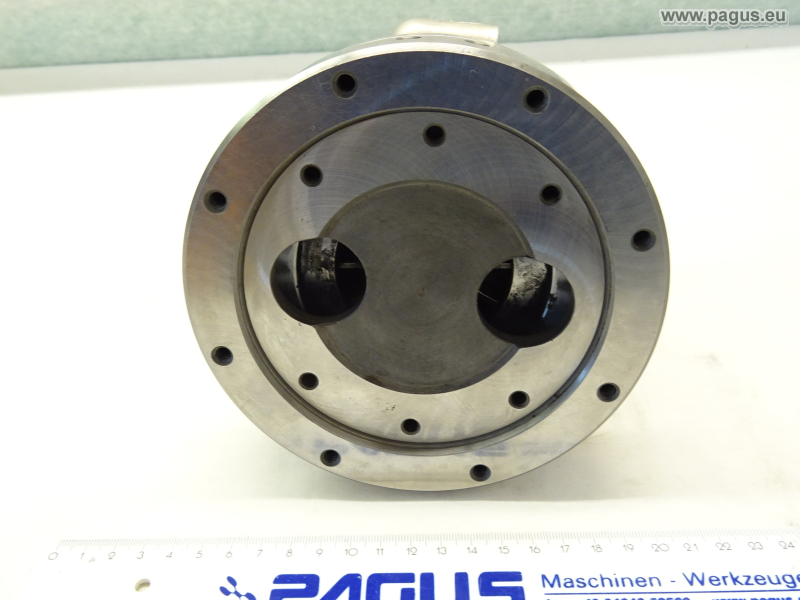

Machine side: Flange diameter: Ã 150 /116 /72 mm
Hole circle diameter: Ã 136 /100 mm
all threaded holes: M6 x 1.0, depth: 12 mm

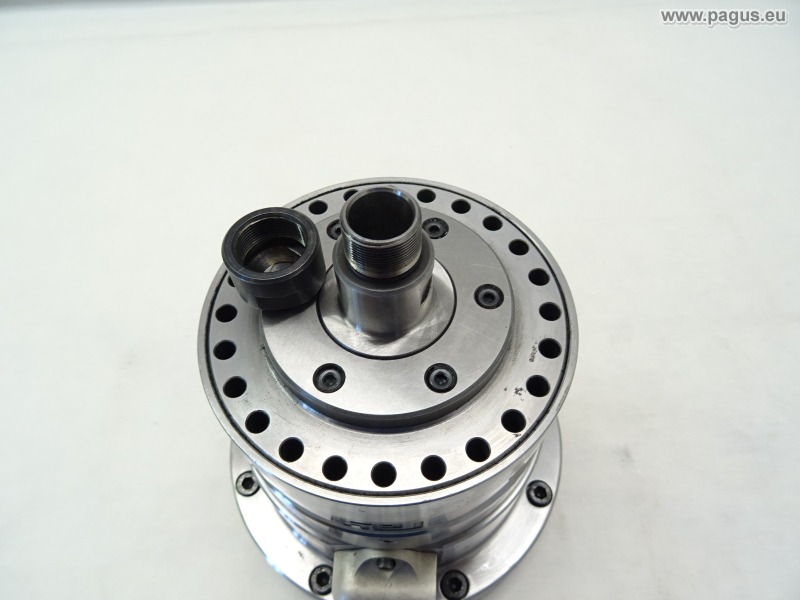

Tool page: Collet chuck for ER16 collets

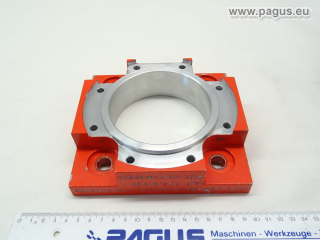

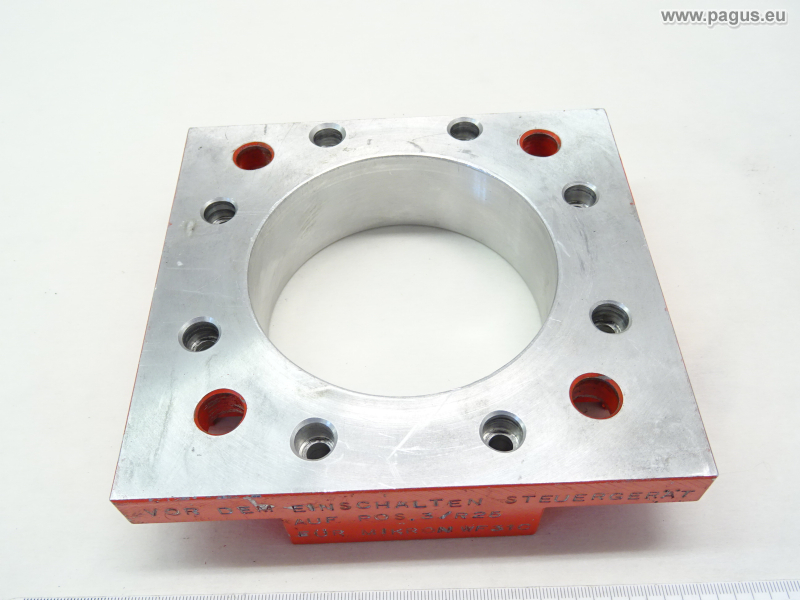

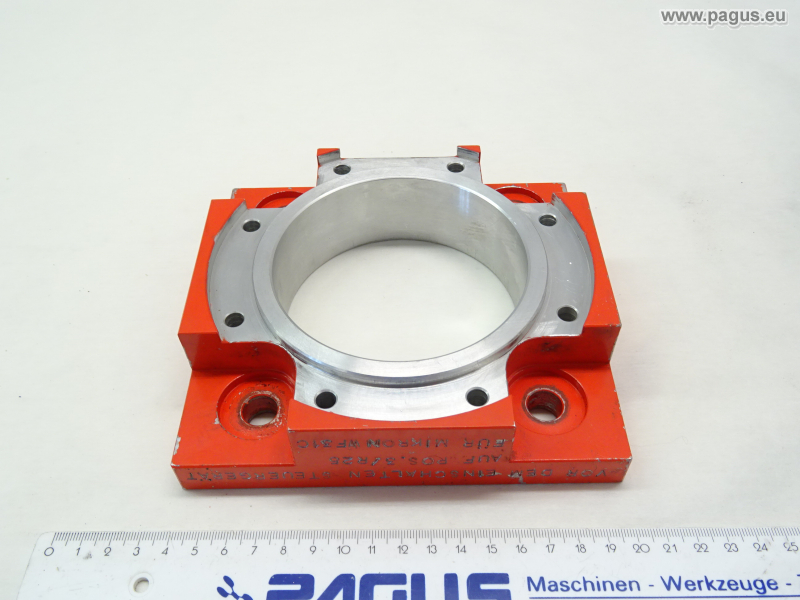

Mounting flange: 150 x 150 x 40 mm
Hole circle diameter: Ã 150 mm
4x bore: Ã 13 mmÂ

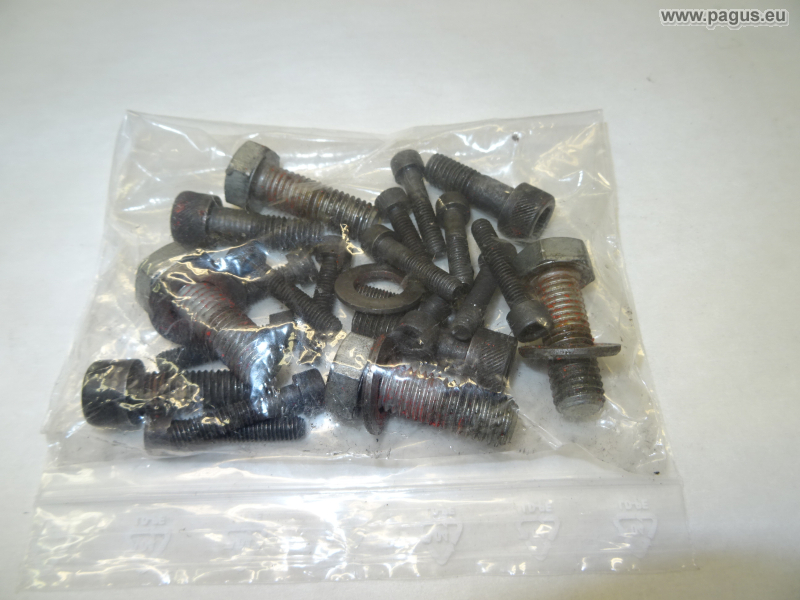

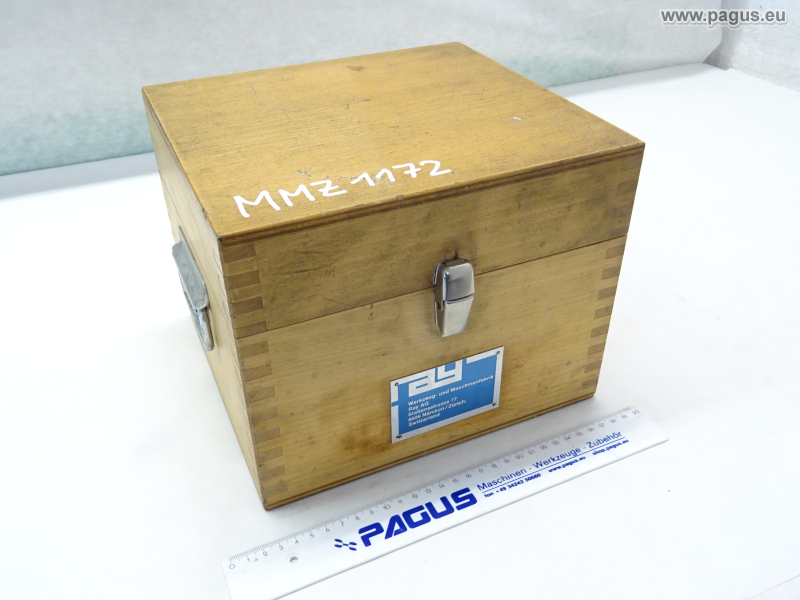

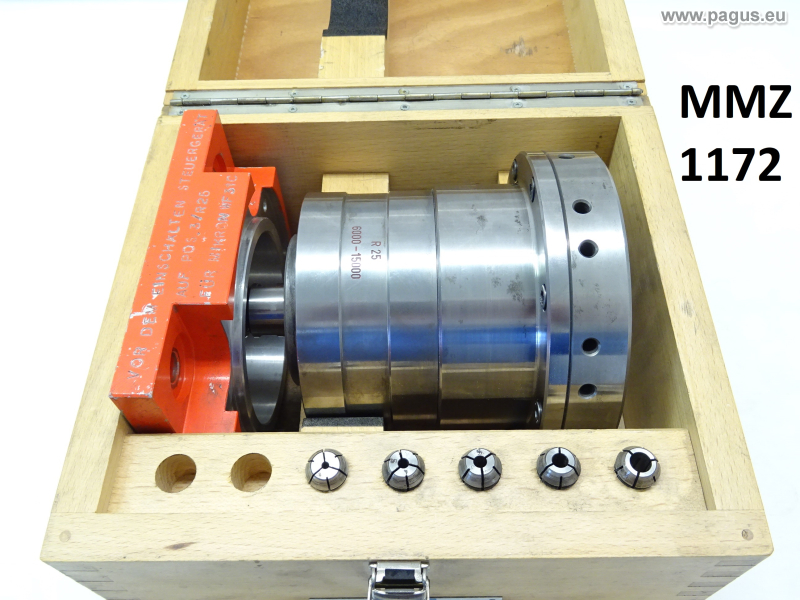

with accessories and wooden box
used, tested!
Dimensions (grinding head): 190 x 150 x 150 mm
Dimensions (packaging): 280 x 260 x 205 mm
