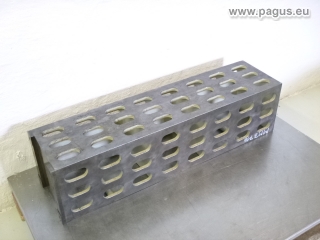

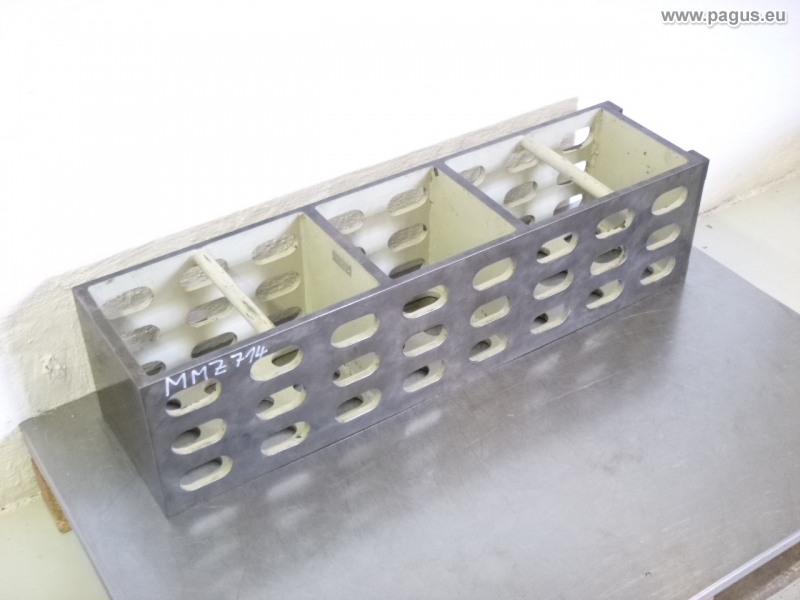

PAGUS clamping box

Footprint: 385 x 200 mm

Working height: 48 mm

Groove width: 10/19 mm

Clamping surface: 205 x 200 x 32 mm

Angle: 60°

Clamping angle

used, checked !

Clamping surface: 930 x 400 mm

Plate thickness: 65 mm

Foot: 500 x 400 mm

11272 31000 I

Dimensions: 96 x 96 x 57 mm

Clamping block, clamping aid

not used!

1x work area: 140 x 76 mm

2x work area: 140 x 64 mm

Working height: 64 mm

Clamping block

used, checked!

Outer Ø: 230 mm

Height above base plate: 35 mm

Clamping plate, rotatable and movable on the base plate

pneumatic clamping

used, checked!

Clamping area: 630 x 270 mm

5 grooves

Groove width: 12 mm

unused !

Clamping surface1: 1000 x 750 mm

Clamping area2: 1000 x 500 mm

Groove width: 22/37 mm

5400 x 1000 mm

Box profile: 160 x 90 mm

Height: 760 mm
