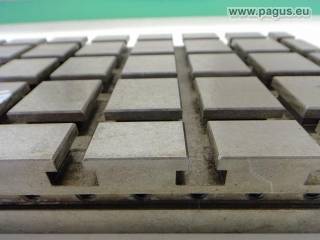

PAGUS clamping plate

Clamping area: 250 x 180 mm

ca. 90 ° tiltable

2 grooves 10/18 x18 mm

Clamping area: 460 x 160 mm

3 grooves

Groove width: 12 x 24 mm

Clamping surface: 205 x 145 mm

approx. -10 ° to + 190 ° tiltable

Tilting table

used, checked!

TD 35/250

Clamping area: 500 x 400 mm,plate thickness: 40 mm

Groove width: 12 /18 mm, groove depth: 21 mm

Clamping table

used, checked !

Footprint: 995 x 125 mm

Thickness: 38 mm

Groove width: 14/23 mm

Clamping surface: 205 x 200 x 32 mm

Angle: 30°

Clamping angle

used, checked !

Footprint: 288 x 153 mm

Working height: 48 mm

Groove width: 10/19 mm

wmw 800 mm x 790 mm

clamping: 800 mm x 790 mm

Monday work: 480 mm x 790 mm

clamping angle

used, placed!

Clamping area: 400 x 250 mm

Working height: 265 mm

x-axis: ± 15 ° tiltable

y axis: ± 20 ° tiltable, 65 mm movable
