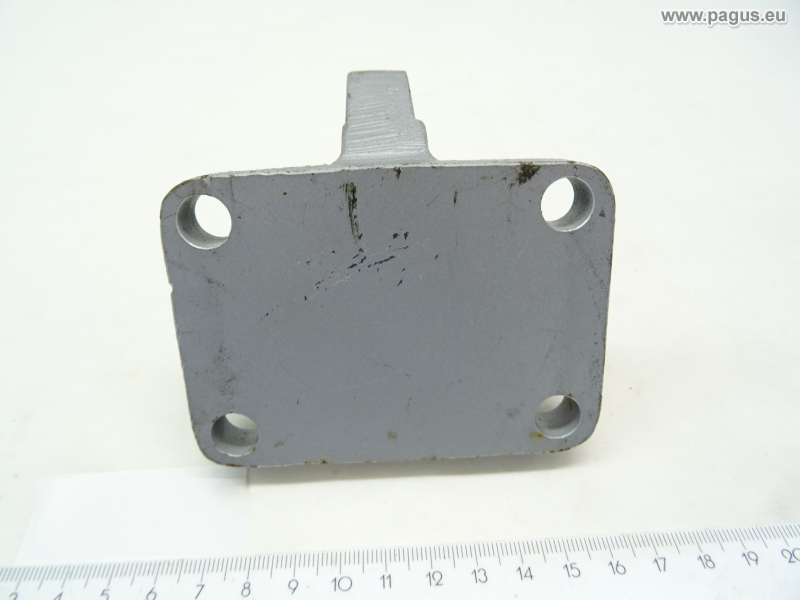

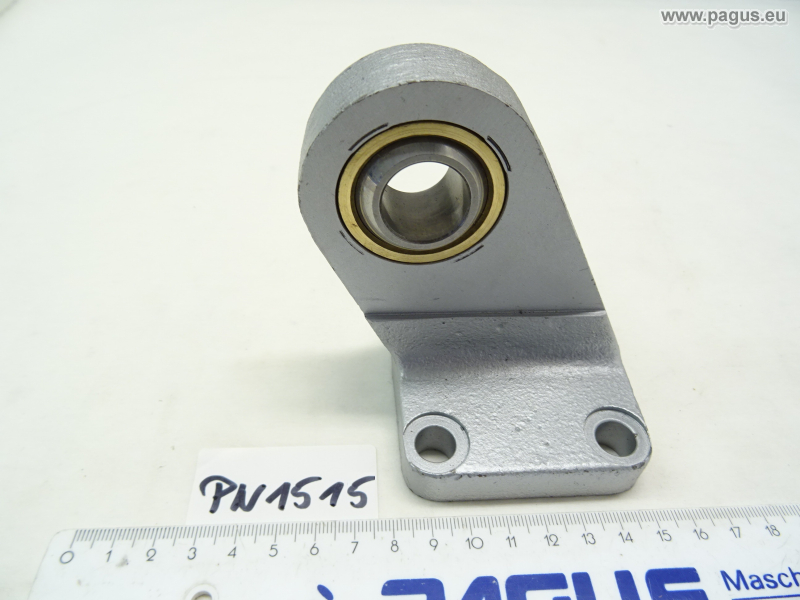

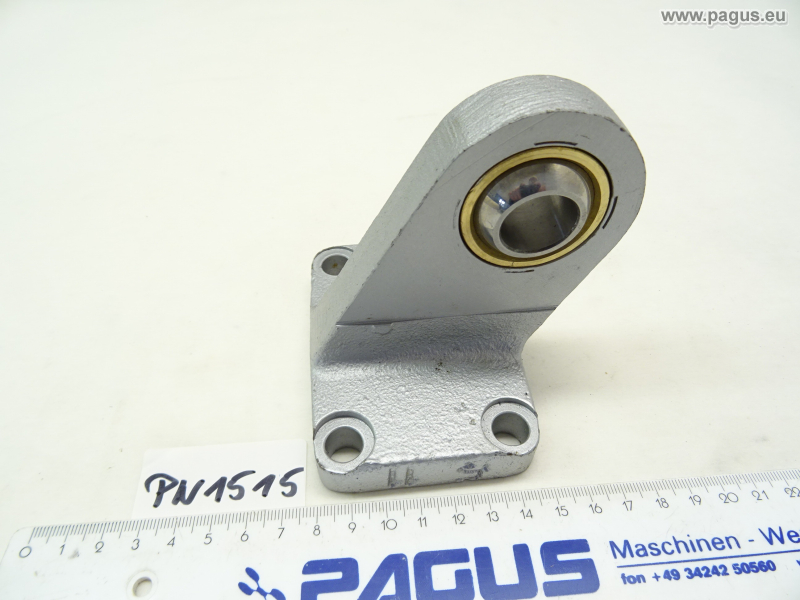

Tab swivel fastening
LANDING FIELD
TF 100
ISO 15552
Total height: 100 mm
Flange: 96 x 70 x 15 mm
Hole spacing: 76 /50 mm
Hole diameter: Ã 11 mm
Eye height: 71 mm
for bolt diameter: Ã 20 mm
for magnetic coil with core diameter: Ã 8 mm, length: 26 mm
Material: steel, GGG
New!
Dimensions: 96 x 95 x 100 mm
More articles in this category
PRA /182125 /W2 /25
Stroke: 25 mm
Rod diameter: Ø 32 mm
PN355
DNG 40-100-PPV-A
36337
stroke: 100 mm
unused!
PN462
SMCÂ CRB80-180
pmax: 1.0 MPa (10 bar)
Pneumatic swivel drive, rotation angle: 180°
New !Â
PN1480
DGP-40-1800-PPV-A-B
161 782
stroke 1800 mm
PN191
DZF-40-100-A-P-A
161 283
stroke: 100 mm
Bar diameter Ø 16 mm
PN656
S1022321080M
Hub 1080 mm
Pmax. 10 bar
PN157
MGPM25TF-50Z
Stroke: 50mm
Compact cylinder with guide
New !
PN1155
FESTOÂ ADN-25-30-A-P-A ( 536256 )
Stroke: 30 mm
1x Flexo coupling: FK-M8 ( 2062 )
Pneumatic cylinder
New!
PN1539
PN1864
