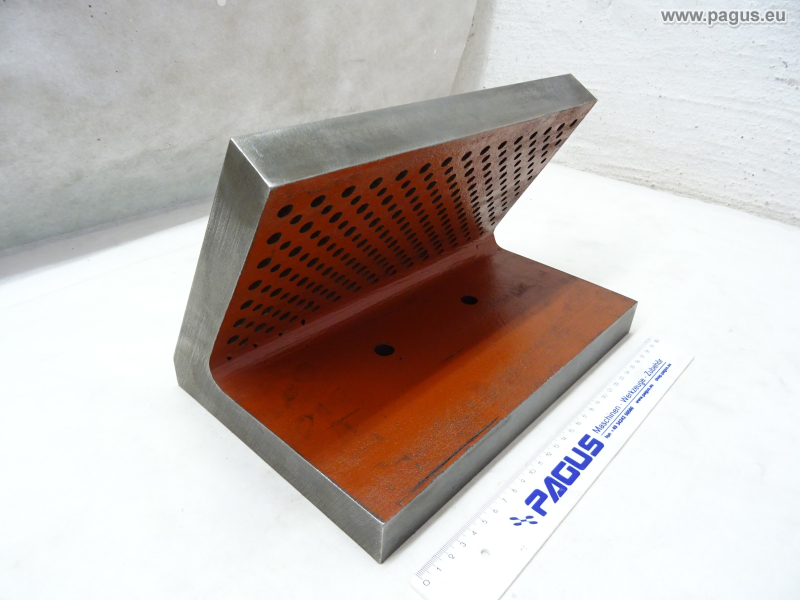

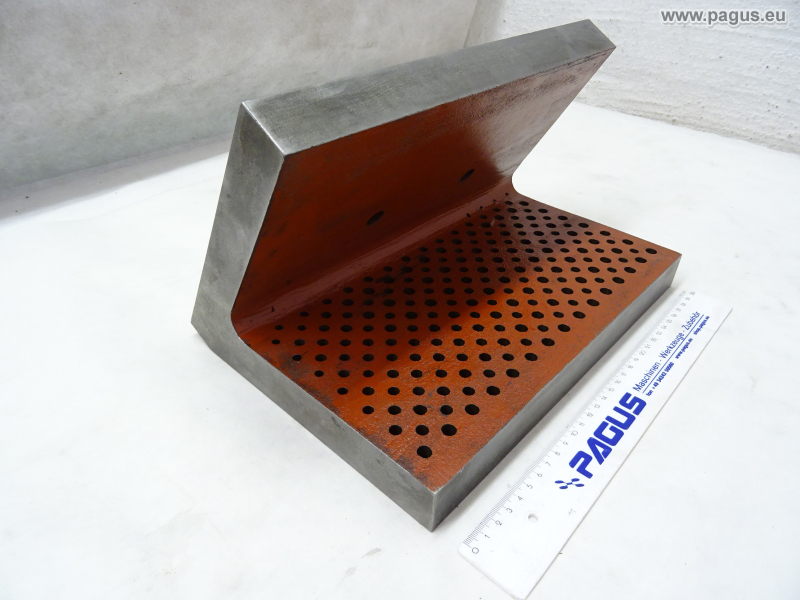

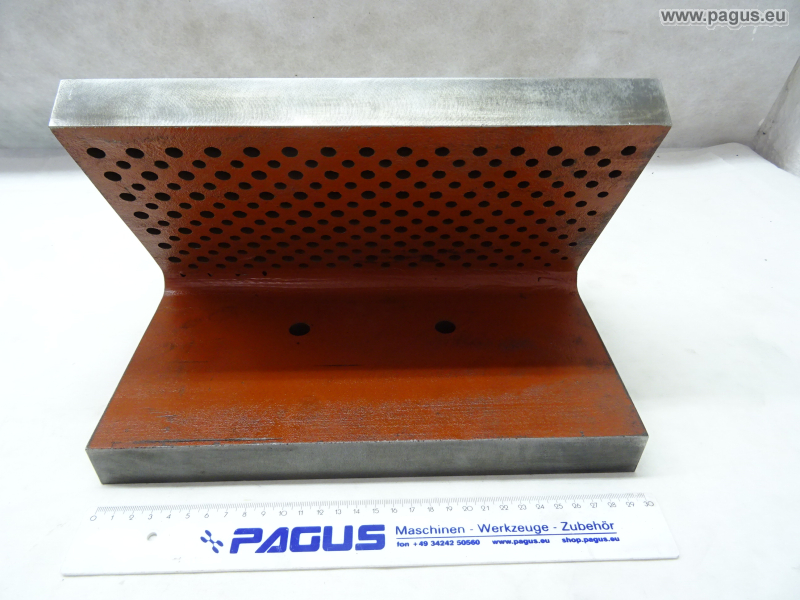

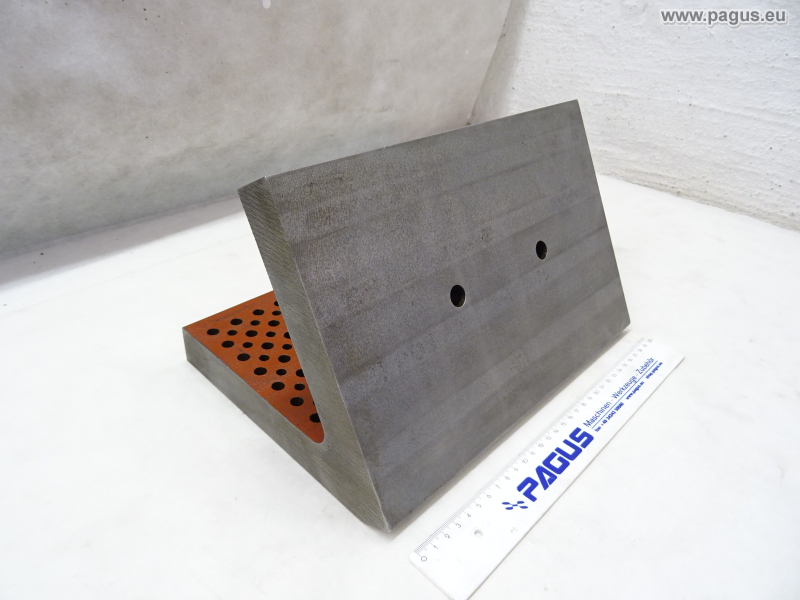

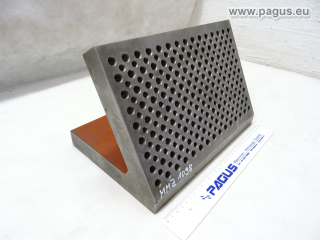

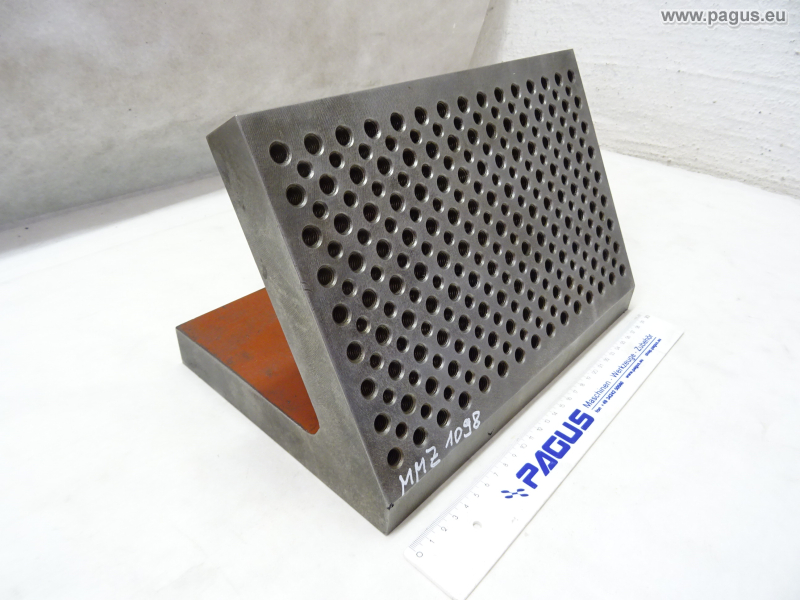

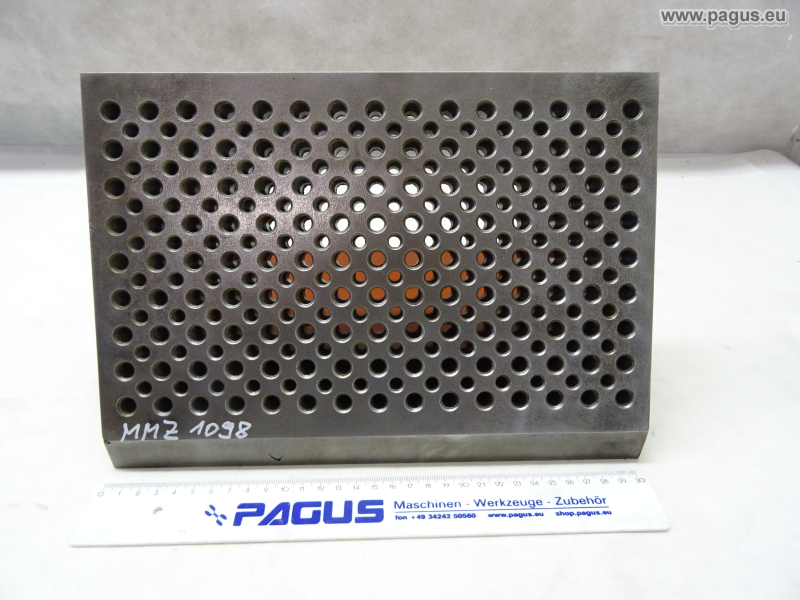

Clamping angle, grid plate
PAGUS
Clamping area: 310 x 200 x 32 mm
Angle: 60°

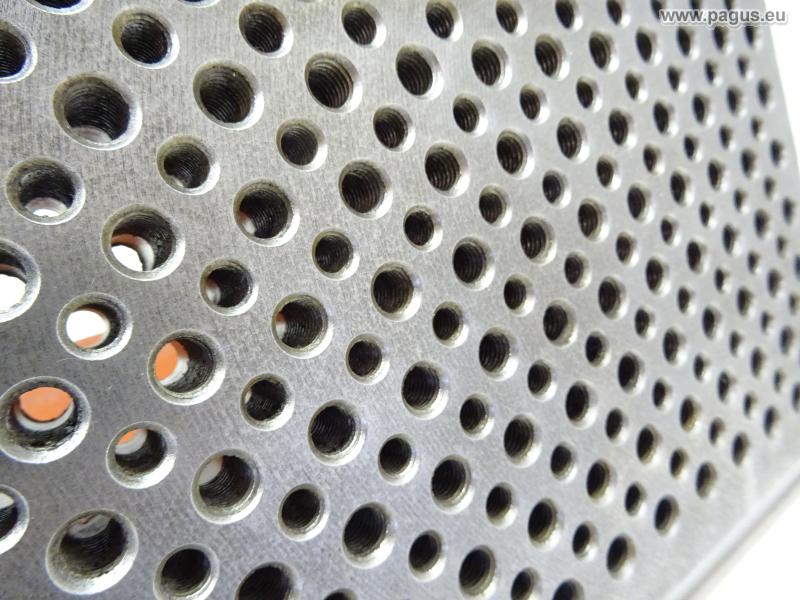

8 rows of 14 threaded holes each: M8 x 1.25, depth: 25 mm
9 rows of 15 threaded holes each: M10 x 1.5, depth: 25 mm
Grid: 20 mm

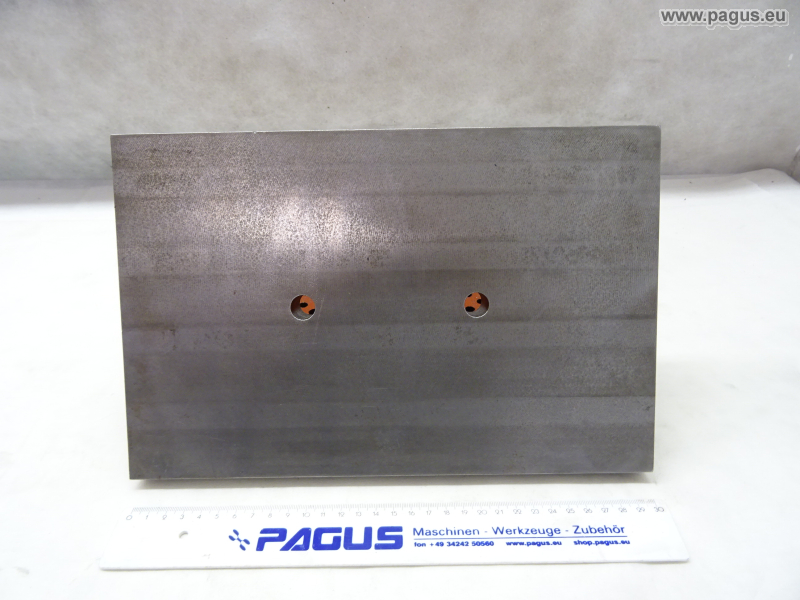

Mounting surface: 310 x 200 x 32 mm
2x bore: Ø 14 mm
Hole spacing: 100 mm
used, checked !
Dimensions: 310 x 200 x 198mm
