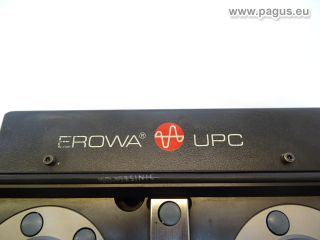

EROWA® palletizing system

203x200

Clamping area1: 203 x 200 mm

Clamping area2: 203 x 200 mm

Angle table

used, checked !

Clamping surface: 1680 x 280 mm

Groove width: 12/20 mm

Groove depth: 20 mm

Clamping table with chip tray

used, checked!

Clamping area: 250 x 180 mm

ca. 90 ° tiltable

2 grooves 10/18 x18 mm

Outer Ø: 230 mm

Height above base plate: 35 mm

Clamping plate, rotatable and movable on the base plate

pneumatic clamping

used, checked!

Clamping surface: 1500 x 750 mm

Clamping surface (dividing head): Ø 630 mm

Division: 360°

Clamping plate with dividing head

used, checked!

150 x 147 x 100 mm (length x width x height)

1x support surface: 150 x 147 mm

Template

New !

Footprint: 332 x 320 mm

Working height: 64 mm

Groove width: 14/24 mm

MAHOÂType 800 E

Clamping area: 1100 x 600 mm

Mounting area: 480 x 400 mm

Clamping table

used, tested!

three-jaw chuck: Ø 190 mm

Total height with jaws: 160 mm

Clamping device with 3-jaw chuck

used, checked!
