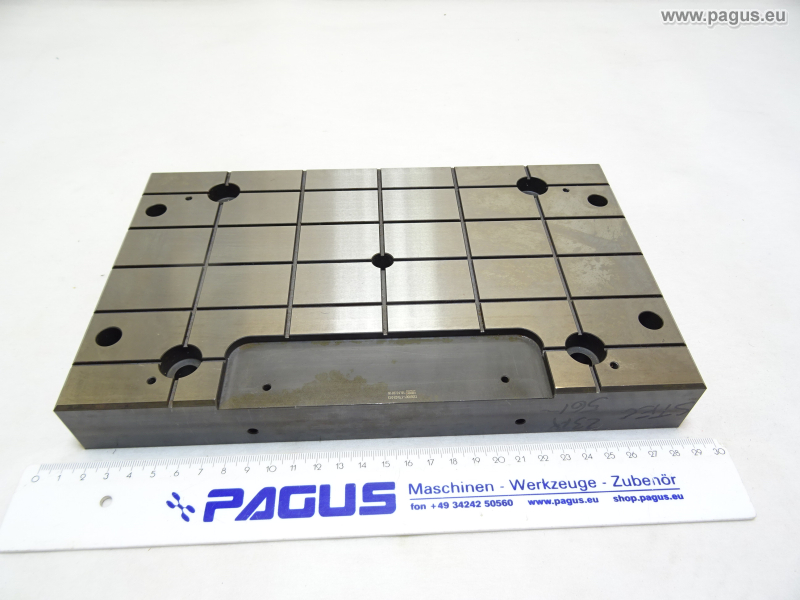

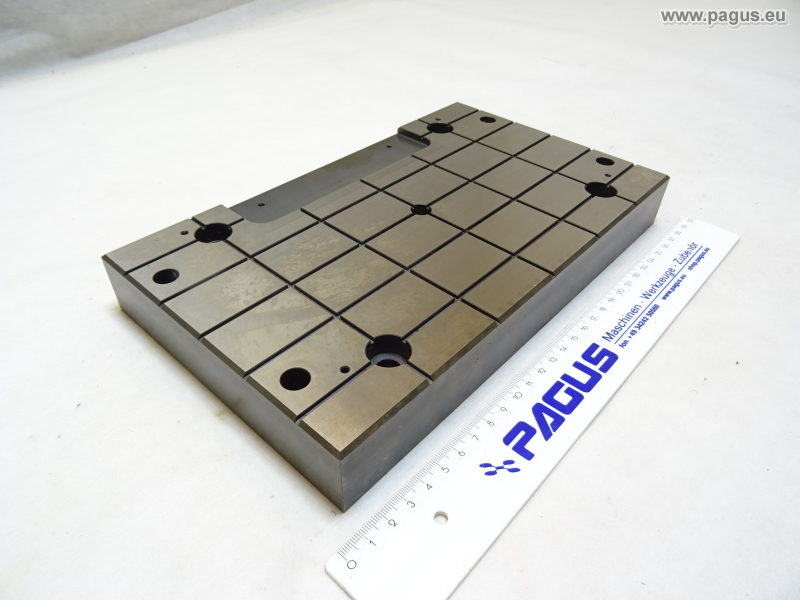

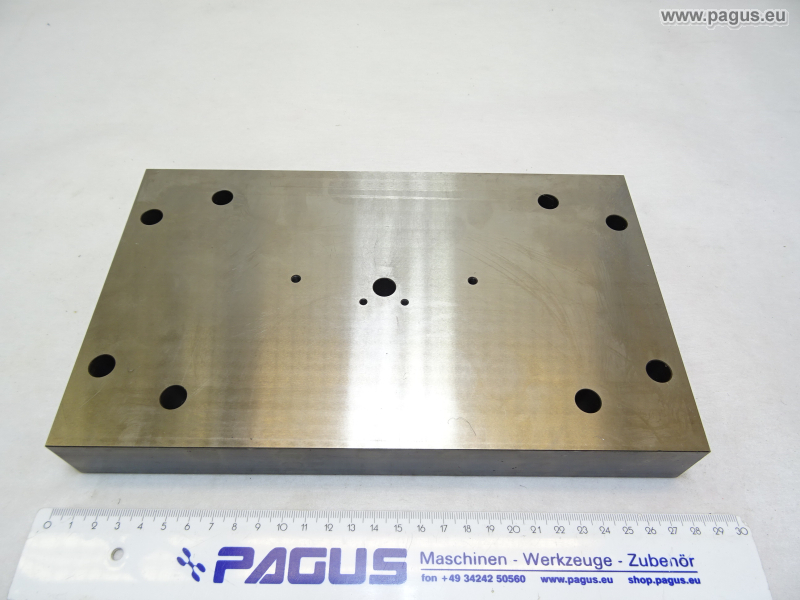

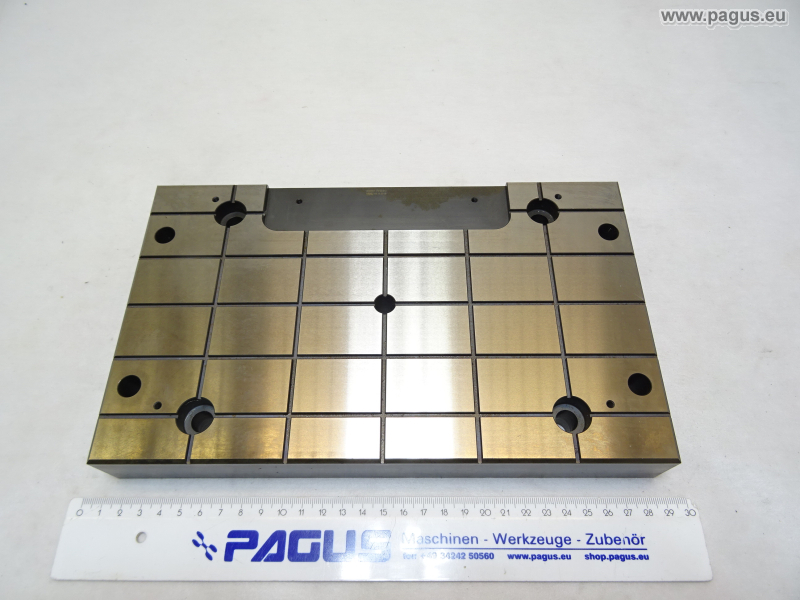

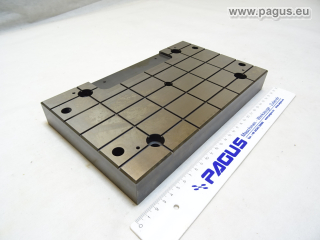

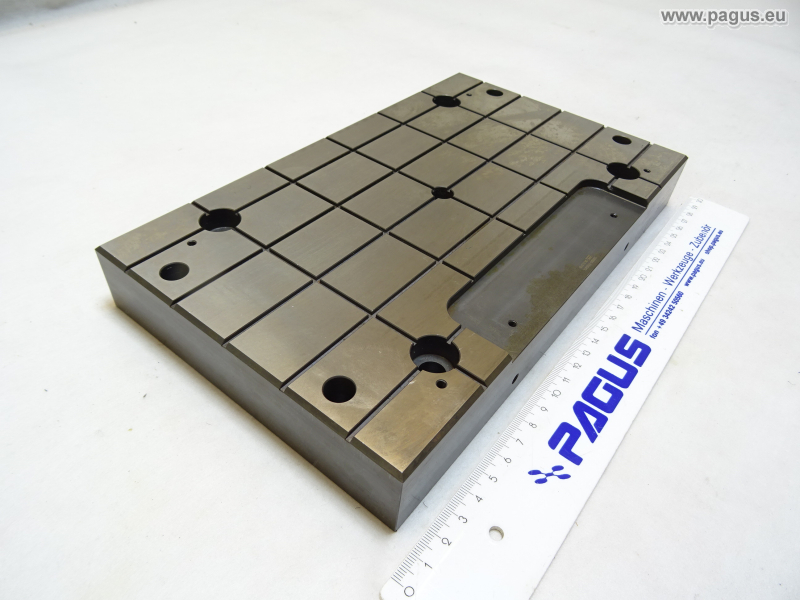

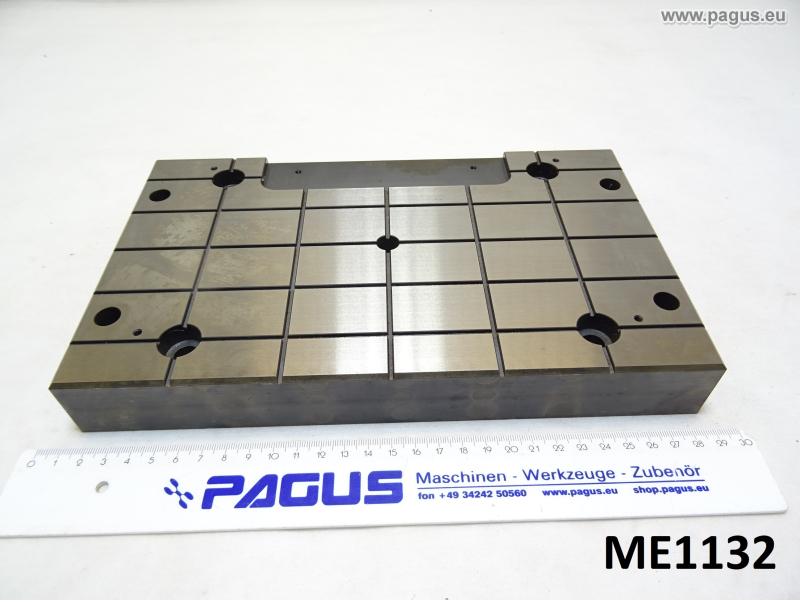

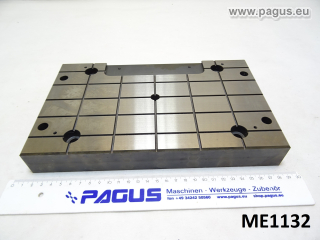

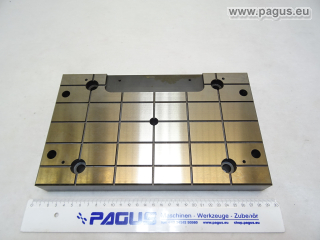

Measuring plate, marking plate
M&R AUTOMATION

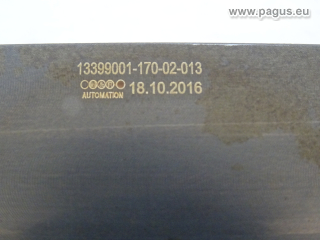

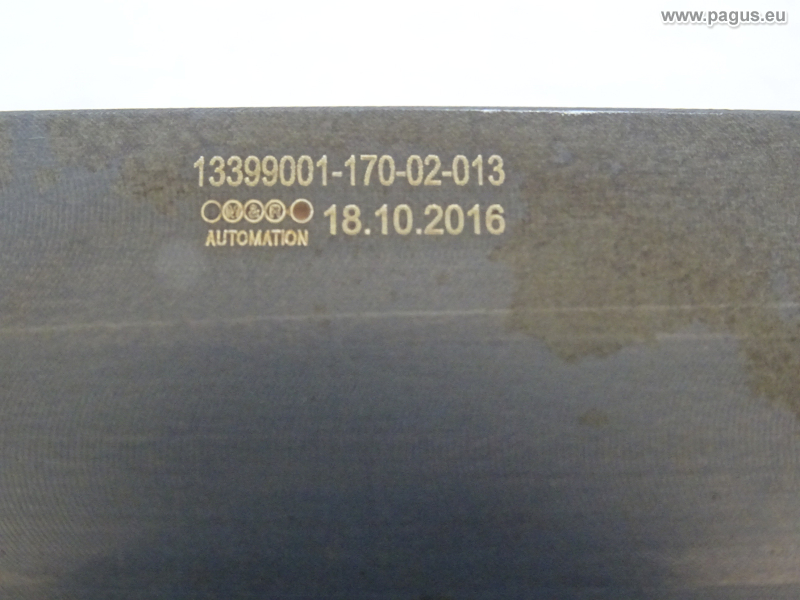

13399001-170-02-013
Work surface: 275 x 165 mm
Plate thickness: 35 mm
Grid: 28 x 43 mm
Hole spacing 1: 120 /180 mm, 4x holes: Ã 11 /18 mm
Hole spacing 2: 90 /250 mm, 4x holes: Ã 11 mm
Hole spacing 3 (diagonal): 133 mm, 1x hole: Ã 11 mm
used, tested!
Dimensions (packaging): 280 x 135 x 40 mm
